SamRecord Class Reference

Class providing an easy to use interface to get/set/operate on the fields in a SAM/BAM record. More...

#include <SamRecord.h>

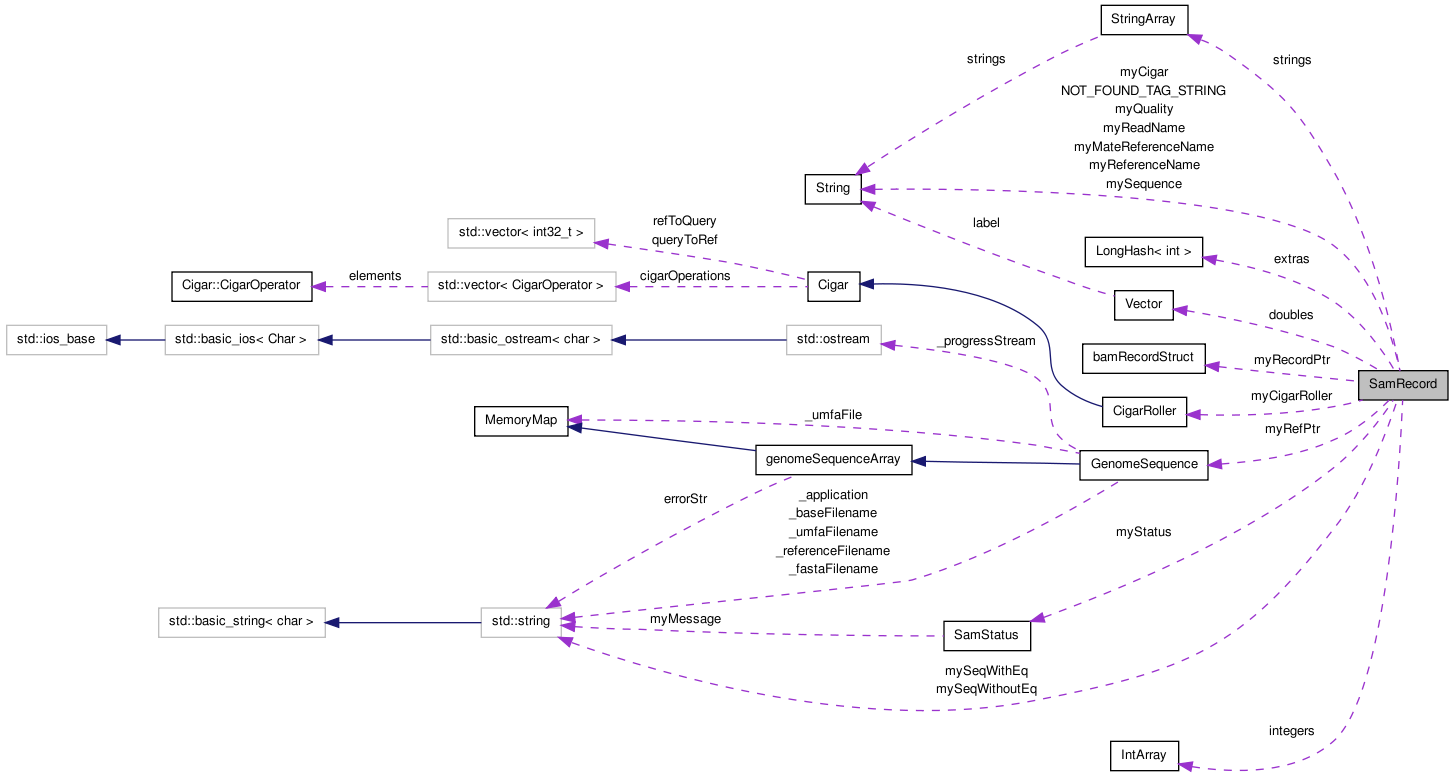

Collaboration diagram for SamRecord:
Collaboration graph
[legend]

List of all members.

Public Types

enum  SequenceTranslation { NONE, EQUAL, BASES }


Enum containing the settings on how to translate the sequence if a reference is available.

More...

Public Member Functions

 SamRecord ()
 Default Constructor.
 SamRecord (ErrorHandler::HandlingType errorHandlingType)
 Constructor that sets the error handling type.
 ~SamRecord ()
 Destructor.
void resetRecord ()
 Reset the fields of the record to a default value.
void resetTagIter ()
 Reset the tag iterator to the beginning of the tags.
bool isValid (SamFileHeader &header)
 Returns whether or not the record is valid.
SamStatus::Status setBufferFromFile (IFILE filePtr, SamFileHeader &header)
 Read the BAM record from a file.
void setReference (GenomeSequence *reference)
 Set the reference to the specified genome sequence object.
void setSequenceTranslation (SequenceTranslation translation)
 Set the type of sequence translation to use when getting the sequence.
bool isIntegerType (char vtype) const
 Returns whether or not the specified vtype is an integer type.
bool isDoubleType (char vtype) const
 Returns whether or not the specified vtype is a double type.
bool isCharType (char vtype) const
 Returns whether or not the specified vtype is a char type.
bool isStringType (char vtype) const
 Returns whether or not the specified vtype is a string type.
void clearTags ()
 Clear the tags in this record.
const SamStatus & getStatus ()
 Returns the status associated with the last method that sets the status.
String & getString (const char *tag)
 Get the string value for the specified tag.
int & getInteger (const char *tag)
 Get the integer value for the specified tag.
double & getDouble (const char *tag)
 Get the double value for the specified tag.
bool checkString (const char *tag)
 Check if the specified tag contains a string.
bool checkInteger (const char *tag)
 Check if the specified tag contains a string.
bool checkDouble (const char *tag)
 Check if the specified tag contains a string.
bool checkTag (const char *tag, char type)
 Check if the specified tag contains a value of the specified vtype.
uint32_t getNumOverlaps (int32_t start, int32_t end)
 Return the number of bases in this read that overlap the passed in region.
Set Alignment Data

Set methods for record fields.

All of the "set" methods set the status to indicate success or the failure reason.

bool setReadName (const char *readName)
 Set QNAME to the passed in name.
bool setFlag (uint16_t flag)
 Set the bitwise flag to the specified value.
bool setReferenceName (SamFileHeader &header, const char *referenceName)
 Set the reference name to the specified name, using the header to determine the reference id.
bool set1BasedPosition (int32_t position)
 Set the leftmost position using the specified 1-based (SAM format) value.
bool set0BasedPosition (int32_t position)
 Set the leftmost position using the specified 0-based (BAM format) value.
bool setMapQuality (uint8_t mapQuality)
 Set the mapping quality.
bool setCigar (const char *cigar)
 Set the CIGAR to the specified SAM formatted cigar string.
bool setCigar (const Cigar &cigar)
 Set the CIGAR to the specified Cigar object.
bool setMateReferenceName (SamFileHeader &header, const char *mateReferenceName)
 Set the mate reference sequence name to the specified name, using the header to determine the matee reference id.
bool set1BasedMatePosition (int32_t matePosition)
 Set the leftmost mate position using the specified 1-based (SAM format) value.
bool set0BasedMatePosition (int32_t matePosition)
 Set the leftmost mate position using the specified 0-based (BAM format) value.
bool setInsertSize (int32_t insertSize)
 Sets the inferred insert size.
bool setSequence (const char *seq)
 Sets the sequence to the specified sequence string.
bool setQuality (const char *quality)
 Sets the quality to the specified quality string.
SamStatus::Status setBuffer (const char *fromBuffer, uint32_t fromBufferSize, SamFileHeader &header)
 Sets the SamRecord to contain the information in BAM format found in fromBuffer.
bool addTag (const char *tag, char vtype, const char *value)
 Add the specified tag to the record.
Get Alignment Data

Get methods for record fields.

All of the "get" methods set the status to indicate success or the failure reason.

const void * getRecordBuffer ()
 Get a const pointer to the buffer that contains the BAM representation of the record.
const void * getRecordBuffer (SequenceTranslation translation)
 Get a const pointer to the buffer that contains the BAM representation of the record.
SamStatus::Status writeRecordBuffer (IFILE filePtr)
 Write the record as a BAM into the specified file.
SamStatus::Status writeRecordBuffer (IFILE filePtr, SequenceTranslation translation)
 Write the record as a BAM into the specified file.
int32_t getBlockSize ()
 Get the block size of the record.
const char * getReferenceName ()
 Get the reference sequence name of the record.
int32_t getReferenceID ()
 Get the reference sequence id of the record.
int32_t get1BasedPosition ()
 Get the 1-based(SAM) leftmost position of the record.
int32_t get0BasedPosition ()
 Get the 0-based(BAM) leftmost position of the record.
uint8_t getReadNameLength ()
 Get the length of the readname (QNAME) including the null.
uint8_t getMapQuality ()
 Get the mapping quality of the record.
uint16_t getBin ()
 Get the BAM bin for the record.
uint16_t getCigarLength ()
 Get the length of the CIGAR in BAM format.
uint16_t getFlag ()
 Get the flag.
int32_t getReadLength ()
 Get the length of the read.
const char * getMateReferenceName ()
 Get the mate reference sequence name of the record.
const char * getMateReferenceNameOrEqual ()
 Get the mate reference sequence name of the record, returning "=" if it is the same as the reference name, unless they are both "*" in which case "*" is returned.
int32_t getMateReferenceID ()
 Get the mate reference id of the record.
int32_t get1BasedMatePosition ()
 Get the 1-based(SAM) leftmost mate position of the record.
int32_t get0BasedMatePosition ()
 Get the 0-based(BAM) leftmost mate position of the record.
int32_t getInsertSize ()
 Get the inferred insert size of the read pair.
int32_t get0BasedAlignmentEnd ()
 Returns the 0-based inclusive rightmost position of the clipped sequence.
int32_t get1BasedAlignmentEnd ()
 Returns the 1-based inclusive rightmost position of the clipped sequence.
int32_t getAlignmentLength ()
 Returns the length of the clipped sequence, returning 0 if the cigar is '*'.
int32_t get0BasedUnclippedStart ()
 Returns the 0-based inclusive left-most position adjusted for clipped bases.
int32_t get1BasedUnclippedStart ()
 Returns the 1-based inclusive left-most position adjusted for clipped bases.
int32_t get0BasedUnclippedEnd ()
 Returns the 0-based inclusive right-most position adjusted for clipped bases.
int32_t get1BasedUnclippedEnd ()
 Returns the 1-based inclusive right-most position adjusted for clipped bases.
const char * getReadName ()
 Returns the SAM formatted Read Name (QNAME).
const char * getCigar ()
 Returns the SAM formatted CIGAR string.
const char * getSequence ()
 Returns the SAM formatted sequence string, translating the base as specified by setSequenceTranslation.
const char * getSequence (SequenceTranslation translation)
 Returns the SAM formatted sequence string performing the specified sequence translation.
const char * getQuality ()
 Returns the SAM formatted quality string.
char getSequence (int index)
 Get the sequence base at the specified index into this sequence 0 to readLength - 1, translating the base as specified by setSequenceTranslation.
char getSequence (int index, SequenceTranslation translation)
 Get the sequence base at the specified index into this sequence 0 to readLength - performing the specified sequence translation1.
char getQuality (int index)
 Get the quality character at the specified index into the quality 0 to readLength - 1.
Cigar * getCigarInfo ()
 Returns a pointer to the Cigar object associated with this record.
uint32_t getTagLength ()
 Returns the length of the tags in BAM format.
bool getNextSamTag (char *tag, char &vtype, void **value)
 Get the next tag from the record.
bool getFields (bamRecordStruct &recStruct, String &readName, String &cigar, String &sequence, String &quality)
 Returns the values of all fields except the tags.
bool getFields (bamRecordStruct &recStruct, String &readName, String &cigar, String &sequence, String &quality, SequenceTranslation translation)
 Returns the values of all fields except the tags.

Detailed Description

Class providing an easy to use interface to get/set/operate on the fields in a SAM/BAM record.

Definition at line 51 of file SamRecord.h.

Member Enumeration Documentation

enum SamRecord::SequenceTranslation

Enum containing the settings on how to translate the sequence if a reference is available.

If no reference is available, no translation is done.

Enumerator:
NONE

Leave the sequence as is.

EQUAL

Translate bases that match the reference to '='.

BASES

Translate '=' to the actual base.

Definition at line 57 of file SamRecord.h.

00057                              {
00058         NONE,   ///< Leave the sequence as is.
00059         EQUAL,  ///< Translate bases that match the reference to '='
00060         BASES,  ///< Translate '=' to the actual base.
00061     };

Constructor & Destructor Documentation

SamRecord::SamRecord ( ErrorHandler::HandlingType  errorHandlingType  )

Constructor that sets the error handling type.

Parameters:
errorHandlingType how to handle errors.

Definition at line 53 of file SamRecord.cpp.

References resetRecord().

00054     : myStatus(errorHandlingType),
00055       myRefPtr(NULL),
00056       mySequenceTranslation(NONE)
00057 {
00058     int32_t defaultAllocSize = DEFAULT_BLOCK_SIZE + sizeof(int32_t);
00059
00060     myRecordPtr =
00061         (bamRecordStruct *) malloc(defaultAllocSize);
00062
00063     myCigarTempBuffer = NULL;
00064     myCigarTempBufferAllocatedSize = 0;
00065
00066     allocatedSize = defaultAllocSize;
00067
00068     resetRecord();
00069 }

Member Function Documentation

bool SamRecord::addTag ( const char *  tag,
char  vtype,
const char *  value
)

Add the specified tag to the record.

Internal processing handles switching between SAM/BAM formats when read/written.

Parameters:
tag two character tag to be added to the SAM/BAM record.
vtype vtype of the specified value - either SAM/BAM vtypes.
value value for the specified tag.
Returns:
true if the tag was successfully added, false otherwise.

Definition at line 469 of file SamRecord.cpp.

00470 {
00471     myStatus = SamStatus::SUCCESS;
00472     bool status = true; // default to successful.
00473     int key = 0;
00474     int intVal = 0;
00475     int index = 0;
00476     char bamvtype;
00477
00478     int tagBufferSize = 0;
00479
00480     // First check to see if the tags need to be synced to the buffer.
00481     if(myNeedToSetTagsFromBuffer)
00482     {
00483         if(!setTagsFromBuffer())
00484         {
00485             // Failed to read tags from the buffer, so cannot add new ones.
00486             return(false);
00487         }
00488     }
00489
00490     switch (vtype)
00491     {
00492         case 'A' :
00493             index = integers.Length();
00494             bamvtype = vtype;
00495             integers.Push((const int)*(valuePtr));
00496             tagBufferSize += 4;
00497             break;
00498         case 'i' :
00499             index = integers.Length();
00500             intVal = atoi((const char *)valuePtr);
00501             // Ints come in as int.  But it can be represented in fewer bits.
00502             // So determine a more specific type that is in line with the
00503             // types for BAM files.
00504             // First check to see if it is a negative.
00505             if(intVal < 0)
00506             {
00507                 // The int is negative, so it will need to use a signed type.
00508                 // See if it is greater than the min value for a char.
00509                 if(intVal > std::numeric_limits<char>::min())
00510                 {
00511                     // It can be stored in a signed char.
00512                     bamvtype = 'c';
00513                     tagBufferSize += 4;
00514                 }
00515                 else if(intVal > std::numeric_limits<short>::min())
00516                 {
00517                     // It fits in a signed short.
00518                     bamvtype = 's';
00519                     tagBufferSize += 5;
00520                 }
00521                 else
00522                 {
00523                     // Just store it as a signed int.
00524                     bamvtype = 'i';
00525                     tagBufferSize += 7;
00526                 }
00527             }
00528             else
00529             {
00530                 // It is positive, so an unsigned type can be used.
00531                 if(intVal < std::numeric_limits<unsigned char>::max())
00532                 {
00533                     // It is under the max of an unsigned char.
00534                     bamvtype = 'C';
00535                     tagBufferSize += 4;
00536                 }
00537                 else if(intVal < std::numeric_limits<unsigned short>::max())
00538                 {
00539                     // It is under the max of an unsigned short.
00540                     bamvtype = 'S';
00541                     tagBufferSize += 5;
00542                 }
00543                 else
00544                 {
00545                     // Just store it as an unsigned int.
00546                     bamvtype = 'I';
00547                     tagBufferSize += 7;
00548                 }
00549             }
00550             integers.Push(intVal);
00551             break;
00552         case 'Z' :
00553             index = strings.Length();
00554             bamvtype = vtype;
00555             strings.Push((const char *)valuePtr);
00556             tagBufferSize += 4 + strings.Last().Length();
00557             break;
00558         case 'f' :
00559             index = doubles.Length();
00560             bamvtype = vtype;
00561             doubles.Push(atof((const char *)valuePtr));
00562             tagBufferSize += 7;
00563             break;
00564         default :
00565             fprintf(stderr,
00566                     "samFile::ReadSAM() - Unknown custom field of type %c\n",
00567                     vtype);
00568             myStatus.setStatus(SamStatus::FAIL_PARSE,
00569                                "Unknown custom field in a tag");
00570             status = false;
00571     }
00572
00573     // Only add the tag if it has so far been successfully processed.
00574     if(status)
00575     {
00576         // The buffer tags are now out of sync.
00577         myNeedToSetTagsInBuffer = true;
00578         myIsTagsBufferValid = false;
00579         myIsBufferSynced = false;
00580
00581         key = MAKEKEY(tag[0], tag[1], bamvtype);
00582         extras.Add(key, index);
00583         myTagBufferSize += tagBufferSize;
00584     }
00585     return(status);
00586 }

bool SamRecord::checkDouble ( const char *  tag  )  [inline]

Check if the specified tag contains a string.

Does not set SamStatus.

Parameters:
tag SAM tag to check contents of.
Returns:
true if the value associated with the tag is a string.

Definition at line 521 of file SamRecord.h.

References checkTag().

00521 { return checkTag(tag, 'f'); }

bool SamRecord::checkInteger ( const char *  tag  )  [inline]

Check if the specified tag contains a string.

Does not set SamStatus.

Parameters:
tag SAM tag to check contents of.
Returns:
true if the value associated with the tag is a string.

Definition at line 515 of file SamRecord.h.

References checkTag().

00515 { return checkTag(tag, 'i'); }

bool SamRecord::checkString ( const char *  tag  )  [inline]

Check if the specified tag contains a string.

Does not set SamStatus.

Parameters:
tag SAM tag to check contents of.
Returns:
true if the value associated with the tag is a string.

Definition at line 509 of file SamRecord.h.

References checkTag().

00509 { return checkTag(tag, 'Z'); }

bool SamRecord::checkTag ( const char *  tag,
char  type
)

Check if the specified tag contains a value of the specified vtype.

Does not set SamStatus.

Parameters:
tag SAM tag to check contents of.
type value type to check if the SAM tag matches.
Returns:
true if the value associated with the tag is a string.

Definition at line 1545 of file SamRecord.cpp.

Referenced by checkDouble(), checkInteger(), and checkString().

01546 {
01547     // Init to success.
01548     myStatus = SamStatus::SUCCESS;
01549     // Parse the buffer if necessary.
01550     if(myNeedToSetTagsFromBuffer)
01551     {
01552         if(!setTagsFromBuffer())
01553         {
01554             // Failed to read the tags from the buffer, so cannot
01555             // get tags.
01556             return("");
01557         }
01558     }
01559
01560     int key = MAKEKEY(tag[0], tag[1], type);
01561
01562     return (extras.Find(key) != LH_NOTFOUND);
01563 }

void SamRecord::clearTags (  )

Clear the tags in this record.

Does not set SamStatus.

Definition at line 1433 of file SamRecord.cpp.

References resetTagIter().

Referenced by resetRecord().

01434 {
01435     if(extras.Entries() != 0)
01436     {
01437         extras.Clear();
01438     }
01439     strings.Clear();
01440     integers.Clear();
01441     doubles.Clear();
01442     myTagBufferSize = 0;
01443     resetTagIter();
01444 }

int32_t SamRecord::get0BasedAlignmentEnd (  )

Returns the 0-based inclusive rightmost position of the clipped sequence.

Returns:
0-based inclusive rightmost position

Definition at line 853 of file SamRecord.cpp.

Referenced by get0BasedUnclippedEnd(), get1BasedAlignmentEnd(), and SamFile::readIndexedRecord().

00854 {
00855     myStatus = SamStatus::SUCCESS;
00856     if(myAlignmentLength == -1)
00857     {
00858         // Alignment end has not been set, so calculate it.
00859         parseCigar();
00860     }
00861     // If alignment length > 0, subtract 1 from it to get the end.
00862     if(myAlignmentLength == 0)
00863     {
00864         // Length is 0, just return the start position.
00865         return(myRecordPtr->myPosition);
00866     }
00867     return(myRecordPtr->myPosition + myAlignmentLength - 1);
00868 }

int32_t SamRecord::get0BasedMatePosition (  )

Get the 0-based(BAM) leftmost mate position of the record.

Returns:
0-based leftmost position.

Definition at line 838 of file SamRecord.cpp.

00839 {
00840     myStatus = SamStatus::SUCCESS;
00841     return myRecordPtr->myMatePosition;
00842 }

int32_t SamRecord::get0BasedPosition (  )

Get the 0-based(BAM) leftmost position of the record.

Returns:
0-based leftmost position.

Definition at line 705 of file SamRecord.cpp.

Referenced by getNumOverlaps(), SamFile::readIndexedRecord(), SamQuerySeqWithRefIter::reset(), and SamFile::validateSortOrder().

00706 {
00707     myStatus = SamStatus::SUCCESS;
00708     return myRecordPtr->myPosition;
00709 }

int32_t SamRecord::get0BasedUnclippedEnd (  )

Returns the 0-based inclusive right-most position adjusted for clipped bases.

Returns:
0-based inclusive rightmost position including clips.

Definition at line 912 of file SamRecord.cpp.

References get0BasedAlignmentEnd().

Referenced by get1BasedUnclippedEnd().

00913 {
00914     // myUnclippedEndOffset will be set by get0BasedAlignmentEnd if the
00915     // cigar has not yet been parsed, so no need to check it here.
00916     return(get0BasedAlignmentEnd() + myUnclippedEndOffset);
00917 }

int32_t SamRecord::get0BasedUnclippedStart (  )

Returns the 0-based inclusive left-most position adjusted for clipped bases.

Returns:
0-based inclusive leftmost position including clips.

Definition at line 892 of file SamRecord.cpp.

Referenced by get1BasedUnclippedStart().

00893 {
00894     myStatus = SamStatus::SUCCESS;
00895     if(myUnclippedStartOffset == -1)
00896     {
00897         // Unclipped has not yet been calculated, so parse the cigar to get it
00898         parseCigar();
00899     }
00900     return(myRecordPtr->myPosition - myUnclippedStartOffset);
00901 }

int32_t SamRecord::get1BasedAlignmentEnd (  )

Returns the 1-based inclusive rightmost position of the clipped sequence.

Returns:
1-based inclusive rightmost position

Definition at line 872 of file SamRecord.cpp.

References get0BasedAlignmentEnd().

Referenced by getBin().

00873 {
00874     return(get0BasedAlignmentEnd() + 1);
00875 }

int32_t SamRecord::get1BasedMatePosition (  )

Get the 1-based(SAM) leftmost mate position of the record.

Returns:
1-based leftmost position.

Definition at line 831 of file SamRecord.cpp.

00832 {
00833     myStatus = SamStatus::SUCCESS;
00834     return (myRecordPtr->myMatePosition + 1);
00835 }

int32_t SamRecord::get1BasedPosition (  )

Get the 1-based(SAM) leftmost position of the record.

Returns:
1-based leftmost position.

Definition at line 698 of file SamRecord.cpp.

00699 {
00700     myStatus = SamStatus::SUCCESS;
00701     return (myRecordPtr->myPosition + 1);
00702 }

int32_t SamRecord::get1BasedUnclippedEnd (  )

Returns the 1-based inclusive right-most position adjusted for clipped bases.

Returns:
1-based inclusive rightmost position including clips.

Definition at line 921 of file SamRecord.cpp.

References get0BasedUnclippedEnd().

00922 {
00923     return(get0BasedUnclippedEnd() + 1);
00924 }

int32_t SamRecord::get1BasedUnclippedStart (  )

Returns the 1-based inclusive left-most position adjusted for clipped bases.

Returns:
1-based inclusive leftmost position including clips.

Definition at line 905 of file SamRecord.cpp.

References get0BasedUnclippedStart().

00906 {
00907     return(get0BasedUnclippedStart() + 1);
00908 }

int32_t SamRecord::getAlignmentLength (  )

Returns the length of the clipped sequence, returning 0 if the cigar is '*'.

Returns:
length of the clipped sequence.

Definition at line 879 of file SamRecord.cpp.

00880 {
00881     myStatus = SamStatus::SUCCESS;
00882     if(myAlignmentLength == -1)
00883     {
00884         // Alignment end has not been set, so calculate it.
00885         parseCigar();
00886     }
00887     // Return the alignment length.
00888     return(myAlignmentLength);
00889 }

uint16_t SamRecord::getBin (  )

Get the BAM bin for the record.

Returns:
BAM bin

Definition at line 733 of file SamRecord.cpp.

References get1BasedAlignmentEnd().

00734 {
00735     myStatus = SamStatus::SUCCESS;
00736     if(!myIsBinValid)
00737     {
00738         // The bin that is set in the record is not valid, so
00739         // reset it.
00740         myRecordPtr->myBin =
00741             bam_reg2bin(myRecordPtr->myPosition, get1BasedAlignmentEnd());
00742         myIsBinValid = true;
00743     }
00744     return(myRecordPtr->myBin);
00745 }

int32_t SamRecord::getBlockSize (  )

Get the block size of the record.

Returns:
BAM block size of the record.

Definition at line 667 of file SamRecord.cpp.

00668 {
00669     myStatus = SamStatus::SUCCESS;
00670     // If the buffer isn't synced, sync the buffer to determine the
00671     // block size.
00672     if(myIsBufferSynced == false)
00673     {
00674         // Since this just returns the block size, the translation of
00675         // the sequence does not matter, so just use the currently set
00676         // value.
00677         fixBuffer(myBufferSequenceTranslation);
00678     }
00679     return myRecordPtr->myBlockSize;
00680 }

const char * SamRecord::getCigar (  )

Returns the SAM formatted CIGAR string.

Returns:
cigar string.

Definition at line 941 of file SamRecord.cpp.

Referenced by getFields().

00942 {
00943     myStatus = SamStatus::SUCCESS;
00944     if(myCigar.Length() == 0)
00945     {
00946         // 0 Length, means that it is in the buffer, but has not yet
00947         // been synced to the string, so do the sync.
00948         parseCigarBinary();
00949     }
00950     return myCigar.c_str();
00951 }

Cigar * SamRecord::getCigarInfo (  )

Returns a pointer to the Cigar object associated with this record.

The object is essentially read-only, only allowing modifications due to lazy evaluations.

Returns:
pointer to the Cigar object.

Definition at line 1212 of file SamRecord.cpp.

Referenced by SamQuerySeqWithRefIter::reset().

01213 {
01214     // Check to see whether or not the Cigar has already been
01215     // set - this is determined by checking if alignment length
01216     // is set since alignment length and the cigar are set
01217     // at the same time.
01218     if(myAlignmentLength == -1)
01219     {
01220         // Not been set, so calculate it.
01221         parseCigar();
01222     }
01223     return(&myCigarRoller);
01224 }

uint16_t SamRecord::getCigarLength (  )

Get the length of the CIGAR in BAM format.

Returns:
length of BAM formatted cigar.

Definition at line 748 of file SamRecord.cpp.

00749 {
00750     myStatus = SamStatus::SUCCESS;
00751     // If the cigar buffer is valid
00752     // then get the length from there.
00753     if(myIsCigarBufferValid)
00754     {
00755         return myRecordPtr->myCigarLength;
00756     }
00757
00758     if(myCigarTempBufferLength == -1)
00759     {
00760         // The cigar buffer is not valid and the cigar temp buffer is not set,
00761         // so parse the string.
00762         parseCigarString();
00763     }
00764
00765     // The temp buffer is now set, so return the size.
00766     return(myCigarTempBufferLength);
00767 }

double & SamRecord::getDouble ( const char *  tag  )

Get the double value for the specified tag.

Does not set SamStatus.

Definition at line 1514 of file SamRecord.cpp.

01515 {
01516     // Init to success.
01517     myStatus = SamStatus::SUCCESS;
01518     // Parse the buffer if necessary.
01519     if(myNeedToSetTagsFromBuffer)
01520     {
01521         if(!setTagsFromBuffer())
01522         {
01523             // Failed to read the tags from the buffer, so cannot
01524             // get tags.
01525             // TODO - what do we want to do on failure?
01526         }
01527     }
01528
01529     int key = MAKEKEY(tag[0], tag[1], 'f');
01530     int offset = extras.Find(key);
01531
01532     int value;
01533     if (offset < 0)
01534     {
01535         // TODO - what do we want to do on failure?
01536         return NOT_FOUND_TAG_DOUBLE;
01537     }
01538     else
01539         value = extras[offset];
01540
01541     return doubles[value];
01542 }

bool SamRecord::getFields ( bamRecordStruct &  recStruct,
String &  readName,
String &  cigar,
String &  sequence,
String &  quality,
SequenceTranslation  translation
)

Returns the values of all fields except the tags.

Parameters:
recStruct structure containing the contents of all non-variable length fields.
readName read name from the record (return param)
cigar cigar string from the record (return param)
sequence sequence string from the record (return param)
quality quality string from the record (return param)
translation type of sequence translation to use.
Returns:
true if all fields were successfully set, false otherwise.

Definition at line 1344 of file SamRecord.cpp.

References getCigar(), getQuality(), getReadName(), and getSequence().

01347 {
01348     myStatus = SamStatus::SUCCESS;
01349     if(myIsBufferSynced == false)
01350     {
01351         if(!fixBuffer(translation))
01352         {
01353             // failed to set the buffer, return false.
01354             return(false);
01355         }
01356     }
01357     memcpy(&recStruct, myRecordPtr, sizeof(bamRecordStruct));
01358
01359     readName = getReadName();
01360     // Check the status.
01361     if(myStatus != SamStatus::SUCCESS)
01362     {
01363         // Failed to set the fields, return false.
01364         return(false);
01365     }
01366     cigar = getCigar();
01367     // Check the status.
01368     if(myStatus != SamStatus::SUCCESS)
01369     {
01370         // Failed to set the fields, return false.
01371         return(false);
01372     }
01373     sequence = getSequence(translation);
01374     // Check the status.
01375     if(myStatus != SamStatus::SUCCESS)
01376     {
01377         // Failed to set the fields, return false.
01378         return(false);
01379     }
01380     quality = getQuality();
01381     // Check the status.
01382     if(myStatus != SamStatus::SUCCESS)
01383     {
01384         // Failed to set the fields, return false.
01385         return(false);
01386     }
01387     return(true);
01388 }

bool SamRecord::getFields ( bamRecordStruct &  recStruct,
String &  readName,
String &  cigar,
String &  sequence,
String &  quality
)

Returns the values of all fields except the tags.

Parameters:
recStruct structure containing the contents of all non-variable length fields.
readName read name from the record (return param)
cigar cigar string from the record (return param)
sequence sequence string from the record (return param)
quality quality string from the record (return param)
Returns:
true if all fields were successfully set, false otherwise.

Definition at line 1335 of file SamRecord.cpp.

01337 {
01338     return(getFields(recStruct, readName, cigar, sequence, quality,
01339                      mySequenceTranslation));
01340 }

uint16_t SamRecord::getFlag (  )

Get the flag.

Returns:
flag.

Definition at line 770 of file SamRecord.cpp.

Referenced by SamQuerySeqWithRefIter::getNextMatchMismatch().

00771 {
00772     myStatus = SamStatus::SUCCESS;
00773     return myRecordPtr->myFlag;
00774 }

int32_t SamRecord::getInsertSize (  )

Get the inferred insert size of the read pair.

Returns:
inferred insert size.

Definition at line 845 of file SamRecord.cpp.

00846 {
00847     myStatus = SamStatus::SUCCESS;
00848     return myRecordPtr->myInsertSize;
00849 }

int & SamRecord::getInteger ( const char *  tag  )

Get the integer value for the specified tag.

Does not set SamStatus.

Definition at line 1484 of file SamRecord.cpp.

01485 {
01486     // Init to success.
01487     myStatus = SamStatus::SUCCESS;
01488     // Parse the buffer if necessary.
01489     if(myNeedToSetTagsFromBuffer)
01490     {
01491         if(!setTagsFromBuffer())
01492         {
01493             // Failed to read the tags from the buffer, so cannot
01494             // get tags.
01495             // TODO - what do we want to do on failure?
01496         }
01497     }
01498
01499     int key = MAKEKEY(tag[0], tag[1], 'i');
01500     int offset = extras.Find(key);
01501
01502     int value;
01503     if (offset < 0)
01504     {
01505         // TODO - what do we want to do on failure?
01506         return NOT_FOUND_TAG_INT;
01507     }
01508     else
01509         value = extras[offset];
01510
01511     return integers[value];
01512 }

uint8_t SamRecord::getMapQuality (  )

Get the mapping quality of the record.

Returns:
map quality.

Definition at line 726 of file SamRecord.cpp.

00727 {
00728     myStatus = SamStatus::SUCCESS;
00729     return myRecordPtr->myMapQuality;
00730 }

int32_t SamRecord::getMateReferenceID (  )

Get the mate reference id of the record.

Returns:
reference id

Definition at line 824 of file SamRecord.cpp.

00825 {
00826     myStatus = SamStatus::SUCCESS;
00827     return myRecordPtr->myMateReferenceID;
00828 }

const char * SamRecord::getMateReferenceName (  )

Get the mate reference sequence name of the record.

If it is equal to the reference name, it still returns the reference name.

Returns:
reference sequence name

Definition at line 796 of file SamRecord.cpp.

00797 {
00798     myStatus = SamStatus::SUCCESS;
00799     return myMateReferenceName.c_str();
00800 }

const char * SamRecord::getMateReferenceNameOrEqual (  )

Get the mate reference sequence name of the record, returning "=" if it is the same as the reference name, unless they are both "*" in which case "*" is returned.

Returns:
reference sequence name

Definition at line 806 of file SamRecord.cpp.

References getReferenceName().

00807 {
00808     myStatus = SamStatus::SUCCESS;
00809     if(myMateReferenceName == "*")
00810     {
00811         return(myMateReferenceName);
00812     }
00813     if(myMateReferenceName == getReferenceName())
00814     {
00815         return(FIELD_ABSENT_STRING);
00816     }
00817     else
00818     {
00819         return(myMateReferenceName);
00820     }
00821 }

bool SamRecord::getNextSamTag ( char *  tag,
char &  vtype,
void **  value
)

Get the next tag from the record.

Sets the Status to SUCCESS when a tag is successfully returned or when there are no more tags. Otherwise the status is set to describe why it failed (parsing, etc).

Parameters:
tag set to the tag when a tag is read.
vtype set to the vtype when a tag is read.
value pointer to the value of the tag (will need to cast to int, double, char, or string based on vtype).
Returns:
true if a tag was read, false if there are no more tags.

Definition at line 1260 of file SamRecord.cpp.

01261 {
01262     myStatus = SamStatus::SUCCESS;
01263     if(myNeedToSetTagsFromBuffer)
01264     {
01265         if(!setTagsFromBuffer())
01266         {
01267             // Failed to read the tags from the buffer, so cannot
01268             // get tags.
01269             return(false);
01270         }
01271     }
01272
01273     // Increment the tag index to start looking at the next tag.
01274     // At the beginning, it is set to -1.
01275     myLastTagIndex++;
01276     int maxTagIndex = extras.Capacity();
01277     if(myLastTagIndex >= maxTagIndex)
01278     {
01279         // Hit the end of the tags, return false, no more tags.
01280         // Status is still success since this is not an error,
01281         // it is just the end of the list.
01282         return(false);
01283     }
01284
01285     bool tagFound = false;
01286     // Loop until a tag is found or the end of extras is hit.
01287     while((tagFound == false) && (myLastTagIndex < maxTagIndex))
01288     {
01289         if(extras.SlotInUse(myLastTagIndex))
01290         {
01291             // Found a slot to use.
01292             int key = extras.GetKey(myLastTagIndex);
01293             getTag(key, tag);
01294             getVtype(key, vtype);
01295             tagFound = true;
01296             // Get the value associated with the key based on the vtype.
01297             switch (vtype)
01298             {
01299                 case 'A' :
01300                     *value = getIntegerPtr(myLastTagIndex);
01301                     break;
01302                 case 'f' :
01303                     *value = getDoublePtr(myLastTagIndex);
01304                     break;
01305                 case 'c' :
01306                 case 'C' :
01307                 case 's' :
01308                 case 'S' :
01309                 case 'i' :
01310                 case 'I' :
01311                     vtype = 'i';
01312                     *value = getIntegerPtr(myLastTagIndex);
01313                     break;
01314                 case 'Z' :
01315                     *value = getStringPtr(myLastTagIndex);
01316                     break;
01317                 default:
01318                     myStatus.setStatus(SamStatus::FAIL_PARSE,
01319                                        "Unknown tag type");
01320                     tagFound = false;
01321                     break;
01322             }
01323         }
01324         if(!tagFound)
01325         {
01326             // Increment the index since a tag was not found.
01327             myLastTagIndex++;
01328         }
01329     }
01330     return(tagFound);
01331 }

uint32_t SamRecord::getNumOverlaps ( int32_t  start,
int32_t  end
)

Return the number of bases in this read that overlap the passed in region.

Parameters:
start inclusive 0-based start position (reference position) of the region to check for overlaps in. (-1 indicates to start at the beginning of the reference.)
end exclusive 0-based end position (reference position) of the region to check for overlaps in. (-1 indicates to go to the end of the reference.)
Returns:
number of overlapping bases (matches in the cigar - not skips/deletions)

Definition at line 1568 of file SamRecord.cpp.

References get0BasedPosition().

Referenced by SamFile::GetNumOverlaps().

01569 {
01570     // Determine whether or not the cigar has been parsed, which sets up
01571     // the cigar roller.  This is determined by checking the alignment length.
01572     if(myAlignmentLength == -1)
01573     {
01574         parseCigar();
01575     }
01576     return(myCigarRoller.getNumOverlaps(start, end, get0BasedPosition()));
01577 }

char SamRecord::getQuality ( int  index  )

Get the quality character at the specified index into the quality 0 to readLength - 1.

Parameters:
index index into the quality string (0 to readLength-1).
Returns:
the quality character at the specified index into the quality.

Definition at line 1165 of file SamRecord.cpp.

References getReadLength().

01166 {
01167     // Determine the read length.
01168     int32_t readLen = getReadLength();
01169
01170     // If the read length is 0, return ' ' whose ascii code is below
01171     // the minimum ascii code for qualities.
01172     if(readLen == 0)
01173     {
01174         return(BaseUtilities::UNKNOWN_QUALITY_CHAR);
01175     }
01176     else if((index < 0) || (index >= readLen))
01177     {
01178         // Only get here if the index was out of range, so thow an exception.
01179         String exceptionString = "SamRecord::getQuality(";
01180         exceptionString += index;
01181         exceptionString += ") is out of range. Index must be between 0 and ";
01182         exceptionString += (readLen - 1);
01183         throw std::runtime_error(exceptionString.c_str());
01184     }
01185
01186     if(myQuality.Length() == 0)
01187     {
01188         // Parse BAM Quality.
01189         unsigned char * packedQuality =
01190             (unsigned char *)myRecordPtr->myData +
01191             myRecordPtr->myReadNameLength +
01192             myRecordPtr->myCigarLength * sizeof(int) +
01193             (myRecordPtr->myReadLength + 1) / 2;
01194         return(packedQuality[index] + 33);
01195     }
01196     else
01197     {
01198         // Already have string.
01199         if((myQuality.Length() == 1) && (myQuality[0] == '*'))
01200         {
01201             // Return 0xFF like it does for BAM.
01202             return(0xFF);
01203         }
01204         else
01205         {
01206             return(myQuality[index]);
01207         }
01208     }
01209 }

const char * SamRecord::getQuality (  )

Returns the SAM formatted quality string.

Returns:
quality string.

Definition at line 1024 of file SamRecord.cpp.

Referenced by getFields().

01025 {
01026     myStatus = SamStatus::SUCCESS;
01027     if(myQuality.Length() == 0)
01028     {
01029         // 0 Length, means that it is in the buffer, but has not yet
01030         // been synced to the string, so do the sync.
01031         setSequenceAndQualityFromBuffer();
01032     }
01033     return myQuality.c_str();
01034 }

int32_t SamRecord::getReadLength (  )

Get the length of the read.

Returns:
read length.

Definition at line 777 of file SamRecord.cpp.

Referenced by SamQuerySeqWithRefIter::getNextMatchMismatch(), getQuality(), getSequence(), and SamQuerySeqWithRefIter::reset().

00778 {
00779     myStatus = SamStatus::SUCCESS;
00780     if(myIsSequenceBufferValid == false)
00781     {
00782         // If the sequence is "*", then return 0.
00783         if((mySequence.Length() == 1) && (mySequence[0] == '*'))
00784         {
00785             return(0);
00786         }
00787         // Do not add 1 since it is not null terminated.
00788         return(mySequence.Length());
00789     }
00790     return(myRecordPtr->myReadLength);
00791 }

const char * SamRecord::getReadName (  )

Returns the SAM formatted Read Name (QNAME).

Returns:
read name.

Definition at line 928 of file SamRecord.cpp.

Referenced by getFields(), and SamFile::validateSortOrder().

00929 {
00930     myStatus = SamStatus::SUCCESS;
00931     if(myReadName.Length() == 0)
00932     {
00933         // 0 Length, means that it is in the buffer, but has not yet
00934         // been synced to the string, so do the sync.
00935         myReadName = (char*)&(myRecordPtr->myData);
00936     }
00937     return myReadName.c_str();
00938 }

uint8_t SamRecord::getReadNameLength (  )

Get the length of the readname (QNAME) including the null.

Returns:
length of the read name (including null).

Definition at line 712 of file SamRecord.cpp.

00713 {
00714     myStatus = SamStatus::SUCCESS;
00715     // If the buffer is valid, return the size from there, otherwise get the
00716     // size from the string length + 1 (ending null).
00717     if(myIsReadNameBufferValid)
00718     {
00719         return(myRecordPtr->myReadNameLength);
00720     }
00721
00722     return(myReadName.Length() + 1);
00723 }

const void * SamRecord::getRecordBuffer ( SequenceTranslation  translation  )

Get a const pointer to the buffer that contains the BAM representation of the record.

Parameters:
translation type of sequence translation to use.
Returns:
const pointer to the buffer that contains the BAM representation of the record.

Definition at line 597 of file SamRecord.cpp.

00598 {
00599     myStatus = SamStatus::SUCCESS;
00600     bool status = true;
00601     // If the buffer is not synced or the sequence in the buffer is not
00602     // properly translated, fix the buffer.
00603     if((myIsBufferSynced == false) ||
00604        (myBufferSequenceTranslation != translation))
00605     {
00606         status &= fixBuffer(translation);
00607     }
00608     // If the buffer is synced, check to see if the tags need to be synced.
00609     if(myNeedToSetTagsInBuffer)
00610     {
00611         status &= setTagsInBuffer();
00612     }
00613     if(!status)
00614     {
00615         return(NULL);
00616     }
00617     return (const void *)myRecordPtr;
00618 }

const void * SamRecord::getRecordBuffer (  )

Get a const pointer to the buffer that contains the BAM representation of the record.

Returns:
const pointer to the buffer that contains the BAM representation of the record.

Definition at line 590 of file SamRecord.cpp.

00591 {
00592     return(getRecordBuffer(mySequenceTranslation));
00593 }

int32_t SamRecord::getReferenceID (  )

Get the reference sequence id of the record.

Returns:
reference sequence id

Definition at line 691 of file SamRecord.cpp.

Referenced by SamFile::readIndexedRecord(), and SamFile::validateSortOrder().

00692 {
00693     myStatus = SamStatus::SUCCESS;
00694     return myRecordPtr->myReferenceID;
00695 }

const char * SamRecord::getReferenceName (  )

Get the reference sequence name of the record.

Returns:
reference sequence name

Definition at line 684 of file SamRecord.cpp.

Referenced by getMateReferenceNameOrEqual(), getSequence(), and SamQuerySeqWithRefIter::reset().

00685 {
00686     myStatus = SamStatus::SUCCESS;
00687     return myReferenceName.c_str();
00688 }

char SamRecord::getSequence ( int  index,
SequenceTranslation  translation
)

Get the sequence base at the specified index into this sequence 0 to readLength - performing the specified sequence translation1.

Parameters:
index index into the sequence string (0 to readLength-1).
translation type of sequence translation to use.
Returns:
the sequence base at the specified index into the sequence.

Definition at line 1043 of file SamRecord.cpp.

References EQUAL, getReadLength(), getReferenceName(), NONE, SamQuerySeqWithRef::seqWithEquals(), and SamQuerySeqWithRef::seqWithoutEquals().

01044 {
01045     static const char * asciiBases = "=AC.G...T......N";
01046
01047     // Determine the read length.
01048     int32_t readLen = getReadLength();
01049
01050     // If the read length is 0, this method should not be called.
01051     if(readLen == 0)
01052     {
01053         String exceptionString = "SamRecord::getSequence(";
01054         exceptionString += index;
01055         exceptionString += ") is not allowed since sequence = '*'";
01056         throw std::runtime_error(exceptionString.c_str());
01057     }
01058     else if((index < 0) || (index >= readLen))
01059     {
01060         // Only get here if the index was out of range, so thow an exception.
01061         String exceptionString = "SamRecord::getSequence(";
01062         exceptionString += index;
01063         exceptionString += ") is out of range. Index must be between 0 and ";
01064         exceptionString += (readLen - 1);
01065         throw std::runtime_error(exceptionString.c_str());
01066     }
01067
01068     // Determine if translation needs to be done.
01069     if((translation == NONE) || (myRefPtr == NULL))
01070     {
01071         // No translation needs to be done.
01072         if(mySequence.Length() == 0)
01073         {
01074             // Parse BAM sequence.
01075             // TODO - maybe store this pointer - and use that to track when
01076             // valid?
01077             unsigned char * packedSequence =
01078                 (unsigned char *)myRecordPtr->myData +
01079                 myRecordPtr->myReadNameLength +
01080                 myRecordPtr->myCigarLength * sizeof(int);
01081
01082             return(index & 1 ?
01083                    asciiBases[packedSequence[index / 2] & 0xF] :
01084                    asciiBases[packedSequence[index / 2] >> 4]);
01085         }
01086         // Already have string.
01087         return(mySequence[index]);
01088     }
01089     else
01090     {
01091         // Need to translate the sequence either to have '=' or to not
01092         // have it.
01093         // First check to see if the sequence has been set.
01094         if(mySequence.Length() == 0)
01095         {
01096             // 0 Length, means that it is in the buffer, but has not yet
01097             // been synced to the string, so do the sync.
01098             setSequenceAndQualityFromBuffer();
01099         }
01100
01101         // Check the type of translation.
01102         if(translation == EQUAL)
01103         {
01104             // Check whether or not the string has already been
01105             // retrieved that has the '=' in it.
01106             if(mySeqWithEq.length() == 0)
01107             {
01108                 // The string with '=' has not yet been determined,
01109                 // so get the string.
01110                 // Check to see if the sequence is defined.
01111                 if(mySequence == "*")
01112                 {
01113                     // Sequence is undefined, so no translation necessary.
01114                     mySeqWithEq = '*';
01115                 }
01116                 else
01117                 {
01118                     // Sequence defined, so translate it.
01119                     SamQuerySeqWithRef::seqWithEquals(mySequence.c_str(),
01120                                                       myRecordPtr->myPosition,
01121                                                       myCigarRoller,
01122                                                       getReferenceName(),
01123                                                       *myRefPtr,
01124                                                       mySeqWithEq);
01125                 }
01126             }
01127             // Sequence is set, so return it.
01128             return(mySeqWithEq[index]);
01129         }
01130         else
01131         {
01132             // translation == BASES
01133             // Check whether or not the string has already been
01134             // retrieved that does not have the '=' in it.
01135             if(mySeqWithoutEq.length() == 0)
01136             {
01137                 // The string with '=' has not yet been determined,
01138                 // so get the string.
01139                 // Check to see if the sequence is defined.
01140                 if(mySequence == "*")
01141                 {
01142                     // Sequence is undefined, so no translation necessary.
01143                     mySeqWithoutEq = '*';
01144                 }
01145                 else
01146                 {
01147                     // Sequence defined, so translate it.
01148                     // The string without '=' has not yet been determined,
01149                     // so get the string.
01150                     SamQuerySeqWithRef::seqWithoutEquals(mySequence.c_str(),
01151                                                          myRecordPtr->myPosition,
01152                                                          myCigarRoller,
01153                                                          getReferenceName(),
01154                                                          *myRefPtr,
01155                                                          mySeqWithoutEq);
01156                 }
01157             }
01158             // Sequence is set, so return it.
01159             return(mySeqWithoutEq[index]);
01160         }
01161     }
01162 }

char SamRecord::getSequence ( int  index  )

Get the sequence base at the specified index into this sequence 0 to readLength - 1, translating the base as specified by setSequenceTranslation.

Parameters:
index index into the sequence string (0 to readLength-1).
Returns:
the sequence base at the specified index into the sequence.

Definition at line 1037 of file SamRecord.cpp.

References getSequence().

01038 {
01039     return(getSequence(index, mySequenceTranslation));
01040 }

const char * SamRecord::getSequence ( SequenceTranslation  translation  )

Returns the SAM formatted sequence string performing the specified sequence translation.

Parameters:
translation type of sequence translation to use.
Returns:
sequence string.

Definition at line 960 of file SamRecord.cpp.

References EQUAL, getReferenceName(), NONE, SamQuerySeqWithRef::seqWithEquals(), and SamQuerySeqWithRef::seqWithoutEquals().

00961 {
00962     myStatus = SamStatus::SUCCESS;
00963     if(mySequence.Length() == 0)
00964     {
00965         // 0 Length, means that it is in the buffer, but has not yet
00966         // been synced to the string, so do the sync.
00967         setSequenceAndQualityFromBuffer();
00968     }
00969
00970     // Determine if translation needs to be done.
00971     if((translation == NONE) || (myRefPtr == NULL))
00972     {
00973         return mySequence.c_str();
00974     }
00975     else if(translation == EQUAL)
00976     {
00977         if(mySeqWithEq.length() == 0)
00978         {
00979             // Check to see if the sequence is defined.
00980             if(mySequence == "*")
00981             {
00982                 // Sequence is undefined, so no translation necessary.
00983                 mySeqWithEq = '*';
00984             }
00985             else
00986             {
00987                 // Sequence defined, so translate it.
00988                 SamQuerySeqWithRef::seqWithEquals(mySequence.c_str(),
00989                                                   myRecordPtr->myPosition,
00990                                                   myCigarRoller,
00991                                                   getReferenceName(),
00992                                                   *myRefPtr,
00993                                                   mySeqWithEq);
00994             }
00995         }
00996         return(mySeqWithEq.c_str());
00997     }
00998     else
00999     {
01000         // translation == BASES
01001         if(mySeqWithoutEq.length() == 0)
01002         {
01003             if(mySequence == "*")
01004             {
01005                 // Sequence is undefined, so no translation necessary.
01006                 mySeqWithoutEq = '*';
01007             }
01008             else
01009             {
01010                 // Sequence defined, so translate it.
01011                 SamQuerySeqWithRef::seqWithoutEquals(mySequence.c_str(),
01012                                                      myRecordPtr->myPosition,
01013                                                      myCigarRoller,
01014                                                      getReferenceName(),
01015                                                      *myRefPtr,
01016                                                      mySeqWithoutEq);
01017             }
01018         }
01019         return(mySeqWithoutEq.c_str());
01020     }
01021 }

const char * SamRecord::getSequence (  )

Returns the SAM formatted sequence string, translating the base as specified by setSequenceTranslation.

Returns:
sequence string.

Definition at line 954 of file SamRecord.cpp.

Referenced by getFields(), SamQuerySeqWithRefIter::getNextMatchMismatch(), and getSequence().

00955 {
00956     return(getSequence(mySequenceTranslation));
00957 }

const SamStatus & SamRecord::getStatus (  )

Returns the status associated with the last method that sets the status.

Returns:
SamStatus of the last command that sets status.

Definition at line 1448 of file SamRecord.cpp.

01449 {
01450     return(myStatus);
01451 }

String & SamRecord::getString ( const char *  tag  )

Get the string value for the specified tag.

Does not set SamStatus.

Definition at line 1454 of file SamRecord.cpp.

01455 {
01456     // Init to success.
01457     myStatus = SamStatus::SUCCESS;
01458     // Parse the buffer if necessary.
01459     if(myNeedToSetTagsFromBuffer)
01460     {
01461         if(!setTagsFromBuffer())
01462         {
01463             // Failed to read the tags from the buffer, so cannot
01464             // get tags.
01465             // TODO - what do we want to do on failure?
01466         }
01467     }
01468
01469     int key = MAKEKEY(tag[0], tag[1], 'Z');
01470     int offset = extras.Find(key);
01471
01472     int value;
01473     if (offset < 0)
01474     {
01475         // TODO - what do we want to do on failure?
01476         return(NOT_FOUND_TAG_STRING);
01477     }
01478     else
01479         value = extras[offset];
01480
01481     return strings[value];
01482 }

uint32_t SamRecord::getTagLength (  )

Returns the length of the tags in BAM format.

Returns:
length of tags in BAM format.

Definition at line 1227 of file SamRecord.cpp.

01228 {
01229     myStatus = SamStatus::SUCCESS;
01230     if(myNeedToSetTagsFromBuffer)
01231     {
01232         // Tags are only set in the buffer, so the size of the tags is
01233         // the length of the record minus the starting location of the tags.
01234         unsigned char * tagStart =
01235             (unsigned char *)myRecordPtr->myData
01236             + myRecordPtr->myReadNameLength
01237             + myRecordPtr->myCigarLength * sizeof(int)
01238             + (myRecordPtr->myReadLength + 1) / 2 + myRecordPtr->myReadLength;
01239
01240         // The non-tags take up from the start of the record to the tag start.
01241         // Do not include the block size part of the record since it is not
01242         // included in the size.
01243         uint32_t nonTagSize =
01244             tagStart - (unsigned char*)&(myRecordPtr->myReferenceID);
01245         // Tags take up the size of the block minus the non-tag section.
01246         uint32_t tagSize = myRecordPtr->myBlockSize - nonTagSize;
01247         return(tagSize);
01248     }
01249
01250     // Tags are stored outside the buffer, so myTagBufferSize is set.
01251     return(myTagBufferSize);
01252 }

bool SamRecord::isCharType ( char  vtype  )  const

Returns whether or not the specified vtype is a char type.

Does not set SamStatus.

Parameters:
vtype value type to check.
Returns:
true if the passed in vtype is a char ('A'), false otherwise.

Definition at line 1413 of file SamRecord.cpp.

01414 {
01415     if(vtype == 'A')
01416     {
01417         return(true);
01418     }
01419     return(false);
01420 }

bool SamRecord::isDoubleType ( char  vtype  )  const

Returns whether or not the specified vtype is a double type.

Does not set SamStatus.

Parameters:
vtype value type to check.
Returns:
true if the passed in vtype is a double ('f'), false otherwise.

Definition at line 1403 of file SamRecord.cpp.

01404 {
01405     if(vtype == 'f')
01406     {
01407         return(true);
01408     }
01409     return(false);
01410 }

bool SamRecord::isIntegerType ( char  vtype  )  const

Returns whether or not the specified vtype is an integer type.

Does not set SamStatus.

Parameters:
vtype value type to check.
Returns:
true if the passed in vtype is an integer ('c', 'C', 's', 'S', 'i', 'I'), false otherwise.

Definition at line 1391 of file SamRecord.cpp.

01392 {
01393     if((vtype == 'c') || (vtype == 'C') ||
01394        (vtype == 's') || (vtype == 'S') ||
01395        (vtype == 'i') || (vtype == 'I'))
01396     {
01397         return(true);
01398     }
01399     return(false);
01400 }

bool SamRecord::isStringType ( char  vtype  )  const

Returns whether or not the specified vtype is a string type.

Does not set SamStatus.

Parameters:
vtype value type to check.
Returns:
true if the passed in vtype is a string ('Z'), false othwerise.

Definition at line 1423 of file SamRecord.cpp.

01424 {
01425     if(vtype == 'Z')
01426     {
01427         return(true);
01428     }
01429     return(false);
01430 }

bool SamRecord::isValid ( SamFileHeader &  header  )

Returns whether or not the record is valid.

Sets the status to indicate success or failure.

Parameters:
header SAM Header associated with the record. Used to perform some validation against the header.
Returns:
true if the record is valid, false if not.

Definition at line 164 of file SamRecord.cpp.

00165 {
00166     myStatus = SamStatus::SUCCESS;
00167     SamValidationErrors invalidSamErrors;
00168     if(!SamValidator::isValid(header, *this, invalidSamErrors))
00169     {
00170         // The record is not valid.
00171         std::string errorMessage = "";
00172         invalidSamErrors.getErrorString(errorMessage);
00173         myStatus.setStatus(SamStatus::INVALID, errorMessage.c_str());
00174         return(false);
00175     }
00176     // The record is valid.
00177     return(true);
00178 }

void SamRecord::resetRecord (  )

Reset the fields of the record to a default value.

This is not necessary when you are reading a Sam/Bam file, but if you are setting fields, it is a good idea to clean out a record before reusing it. Clearing it allows you to not have to set any empty fields.

Definition at line 91 of file SamRecord.cpp.

References clearTags(), and NONE.

Referenced by SamRecord(), setBuffer(), setBufferFromFile(), and ~SamRecord().

00092 {
00093     myIsBufferSynced = true;
00094
00095     myRecordPtr->myBlockSize = DEFAULT_BLOCK_SIZE;
00096     myRecordPtr->myReferenceID = -1;
00097     myRecordPtr->myPosition = -1;
00098     myRecordPtr->myReadNameLength = DEFAULT_READ_NAME_LENGTH;
00099     myRecordPtr->myMapQuality = 0;
00100     myRecordPtr->myBin = DEFAULT_BIN;
00101     myRecordPtr->myCigarLength = 0;
00102     myRecordPtr->myFlag = 0;
00103     myRecordPtr->myReadLength = 0;
00104     myRecordPtr->myMateReferenceID = -1;
00105     myRecordPtr->myMatePosition = -1;
00106     myRecordPtr->myInsertSize = 0;
00107
00108     // Set the sam values for the variable length fields.
00109     // TODO - one way to speed this up might be to not set to "*" and just
00110     // clear them, and write out a '*' for SAM if it is empty.
00111     myReadName = DEFAULT_READ_NAME;
00112     myReferenceName = "*";
00113     myMateReferenceName = "*";
00114     myCigar = "*";
00115     mySequence = "*";
00116     mySeqWithEq.clear();
00117     mySeqWithoutEq.clear();
00118     myQuality = "*";
00119     myNeedToSetTagsFromBuffer = false;
00120     myNeedToSetTagsInBuffer = false;
00121
00122     // Initialize the calculated alignment info to the uncalculated value.
00123     myAlignmentLength = -1;
00124     myUnclippedStartOffset = -1;
00125     myUnclippedEndOffset = -1;
00126
00127     clearTags();
00128
00129     // Set the bam values for the variable length fields.
00130     // Only the read name needs to be set, the others are a length of 0.
00131     // Set the read name.  The min size of myRecordPtr includes the size for
00132     // the default read name.
00133     memcpy(&(myRecordPtr->myData), myReadName.c_str(),
00134            myRecordPtr->myReadNameLength);
00135
00136     // Set that the variable length buffer fields are valid.
00137     myIsReadNameBufferValid = true;
00138     myIsCigarBufferValid = true;
00139     myIsSequenceBufferValid = true;
00140     myBufferSequenceTranslation = NONE;
00141     myIsQualityBufferValid = true;
00142     myIsTagsBufferValid = true;
00143     myIsBinValid = true;
00144
00145     myCigarTempBufferLength = -1;
00146
00147     myStatus = SamStatus::SUCCESS;
00148
00149     NOT_FOUND_TAG_STRING = "";
00150     NOT_FOUND_TAG_INT = -1;
00151     NOT_FOUND_TAG_DOUBLE = -1;
00152 }

bool SamRecord::set0BasedMatePosition ( int32_t  matePosition  )

Set the leftmost mate position using the specified 0-based (BAM format) value.

Internal processing handles the switching between SAM/BAM formats when read/written.

Parameters:
position 0-based start position
Returns:
true if successfully set, false if not.

Definition at line 394 of file SamRecord.cpp.

Referenced by set1BasedMatePosition().

00395 {
00396     myStatus = SamStatus::SUCCESS;
00397     myRecordPtr->myMatePosition = matePosition;
00398     return true;
00399 }

bool SamRecord::set0BasedPosition ( int32_t  position  )

Set the leftmost position using the specified 0-based (BAM format) value.

Internal processing handles the switching between SAM/BAM formats when read/written.

Parameters:
position 0-based start position
Returns:
true if successfully set, false if not.

Definition at line 309 of file SamRecord.cpp.

Referenced by set1BasedPosition().

00310 {
00311     myStatus = SamStatus::SUCCESS;
00312     myRecordPtr->myPosition = position;
00313     myIsBinValid = false;
00314     return true;
00315 }

bool SamRecord::set1BasedMatePosition ( int32_t  matePosition  )

Set the leftmost mate position using the specified 1-based (SAM format) value.

Internal processing handles the switching between SAM/BAM formats when read/written.

Parameters:
position 1-based start position
Returns:
true if successfully set, false if not.

Definition at line 388 of file SamRecord.cpp.

References set0BasedMatePosition().

00389 {
00390     return(set0BasedMatePosition(matePosition - 1));
00391 }

bool SamRecord::set1BasedPosition ( int32_t  position  )

Set the leftmost position using the specified 1-based (SAM format) value.

Internal processing handles the switching between SAM/BAM formats when read/written.

Parameters:
position 1-based start position
Returns:
true if successfully set, false if not.

Definition at line 303 of file SamRecord.cpp.

References set0BasedPosition().

00304 {
00305     return(set0BasedPosition(position - 1));
00306 }

SamStatus::Status SamRecord::setBuffer ( const char *  fromBuffer,
uint32_t  fromBufferSize,
SamFileHeader &  header
)

Sets the SamRecord to contain the information in BAM format found in fromBuffer.

Parameters:
fromBuffer buffer to read the BAM record from.
fromBufferSize size of the buffer containing the BAM record.
header BAM header for the record.
Returns:
status of reading the BAM record from the buffer.

Definition at line 435 of file SamRecord.cpp.

References resetRecord().

00438 {
00439     myStatus = SamStatus::SUCCESS;
00440     if((fromBuffer == NULL) || (fromBufferSize == 0))
00441     {
00442         // Buffer is empty.
00443         myStatus.setStatus(SamStatus::FAIL_PARSE,
00444                            "Cannot parse an empty file.");
00445         return(SamStatus::FAIL_PARSE);
00446     }
00447
00448     // Clear the record.
00449     resetRecord();
00450
00451     // allocate space for the record size.
00452     if(!allocateRecordStructure(fromBufferSize))
00453     {
00454         // Failed to allocate space.
00455         return(SamStatus::FAIL_MEM);
00456     }
00457
00458     memcpy(myRecordPtr, fromBuffer, fromBufferSize);
00459
00460     setVariablesForNewBuffer(header);
00461
00462     // Return the status of the record.
00463     return(SamStatus::SUCCESS);
00464 }

SamStatus::Status SamRecord::setBufferFromFile ( IFILE  filePtr,
SamFileHeader &  header
)

Read the BAM record from a file.

Parameters:
filePtr file to read the buffer from.
header BAM header for the record.
Returns:
status of the reading the BAM record from the file.

Definition at line 182 of file SamRecord.cpp.

References resetRecord().

00184 {
00185     myStatus = SamStatus::SUCCESS;
00186     if((filePtr == NULL) || (filePtr->isOpen() == false))
00187     {
00188         // File is not open, return failure.
00189         myStatus.setStatus(SamStatus::FAIL_ORDER,
00190                            "Can't read from an unopened file.");
00191         return(SamStatus::FAIL_ORDER);
00192     }
00193
00194     // Clear the record.
00195     resetRecord();
00196
00197     // read the record size.
00198     int numBytes =
00199         ifread(filePtr, &(myRecordPtr->myBlockSize), sizeof(int32_t));
00200
00201     if(ifeof(filePtr))
00202     {
00203         if(numBytes == 0)
00204         {
00205             // End of file, nothing was read, no more records.
00206             myStatus.setStatus(SamStatus::NO_MORE_RECS,
00207                                "No more records left to read.");
00208             return(SamStatus::NO_MORE_RECS);
00209         }
00210         else
00211         {
00212             // Error: end of the file reached prior to reading the rest of the
00213             // record.
00214             myStatus.setStatus(SamStatus::FAIL_PARSE,
00215                                "EOF reached in the middle of a record.");
00216             return(SamStatus::FAIL_PARSE);
00217         }
00218     }
00219
00220     // allocate space for the record size.
00221     if(!allocateRecordStructure(myRecordPtr->myBlockSize + sizeof(int32_t)))
00222     {
00223         // Failed to allocate space.
00224         // Status is set by allocateRecordStructure.
00225         return(SamStatus::FAIL_MEM);
00226     }
00227
00228     // Read the rest of the alignment block, starting at the reference id.
00229     if(ifread(filePtr, &(myRecordPtr->myReferenceID), myRecordPtr->myBlockSize)
00230        != (unsigned int)myRecordPtr->myBlockSize)
00231     {
00232         // Error reading the record.  Reset it and return failure.
00233         resetRecord();
00234         myStatus.setStatus(SamStatus::FAIL_IO,
00235                            "Failed to read the record");
00236         return(SamStatus::FAIL_IO);
00237     }
00238
00239     setVariablesForNewBuffer(header);
00240
00241     // Return the status of the record.
00242     return(SamStatus::SUCCESS);
00243 }

bool SamRecord::setCigar ( const Cigar &  cigar  )

Set the CIGAR to the specified Cigar object.

Internal processing handles the switching between SAM/BAM formats when read/written.

Parameters:
cigar object to set this record's cigar to have.
Returns:
true if successfully set, false if not.

Definition at line 345 of file SamRecord.cpp.

00346 {
00347     myStatus = SamStatus::SUCCESS;
00348     cigar.getCigarString(myCigar);
00349
00350     myIsBufferSynced = false;
00351     myIsCigarBufferValid = false;
00352     myCigarTempBufferLength = -1;
00353     myIsBinValid = false;
00354
00355     // Initialize the calculated alignment info to the uncalculated value.
00356     myAlignmentLength = -1;
00357     myUnclippedStartOffset = -1;
00358     myUnclippedEndOffset = -1;
00359
00360     return true;
00361 }

bool SamRecord::setCigar ( const char *  cigar  )

Set the CIGAR to the specified SAM formatted cigar string.

Internal processing handles the switching between SAM/BAM formats when read/written.

Parameters:
cigar string containing the SAM formatted cigar.
Returns:
true if successfully set, false if not.

Definition at line 326 of file SamRecord.cpp.

00327 {
00328     myStatus = SamStatus::SUCCESS;
00329     myCigar = cigar;
00330
00331     myIsBufferSynced = false;
00332     myIsCigarBufferValid = false;
00333     myCigarTempBufferLength = -1;
00334     myIsBinValid = false;
00335
00336     // Initialize the calculated alignment info to the uncalculated value.
00337     myAlignmentLength = -1;
00338     myUnclippedStartOffset = -1;
00339     myUnclippedEndOffset = -1;
00340
00341     return true;
00342 }

bool SamRecord::setFlag ( uint16_t  flag  )

Set the bitwise flag to the specified value.

Parameters:
flag integer flag to use.
Returns:
true if successfully set, false if not.

Definition at line 283 of file SamRecord.cpp.

00284 {
00285     myStatus = SamStatus::SUCCESS;
00286     myRecordPtr->myFlag = flag;
00287     return true;
00288 }

bool SamRecord::setInsertSize ( int32_t  insertSize  )

Sets the inferred insert size.

Parameters:
insertSize inferred insert size.
Returns:
true if successfully set, false if not.

Definition at line 402 of file SamRecord.cpp.

00403 {
00404     myStatus = SamStatus::SUCCESS;
00405     myRecordPtr->myInsertSize = insertSize;
00406     return true;
00407 }

bool SamRecord::setMapQuality ( uint8_t  mapQuality  )

Set the mapping quality.

Parameters:
mapQuality map quality to set in the record.
Returns:
true if successfully set, false if not.

Definition at line 318 of file SamRecord.cpp.

00319 {
00320     myStatus = SamStatus::SUCCESS;
00321     myRecordPtr->myMapQuality = mapQuality;
00322     return true;
00323 }

bool SamRecord::setMateReferenceName ( SamFileHeader &  header,
const char *  mateReferenceName
)

Set the mate reference sequence name to the specified name, using the header to determine the matee reference id.

Parameters:
header SAM/BAM header to use to determine the mate reference id.
referenceName mate reference name to use.
Returns:
true if successfully set, false if not

Definition at line 364 of file SamRecord.cpp.

00366 {
00367     myStatus = SamStatus::SUCCESS;
00368     // Set the mate reference, if it is "=", set it to be equal
00369     // to myReferenceName.  This assumes that myReferenceName has already
00370     // been called.
00371     if(strcmp(mateReferenceName, FIELD_ABSENT_STRING) == 0)
00372     {
00373         myMateReferenceName = myReferenceName;
00374     }
00375     else
00376     {
00377         myMateReferenceName = mateReferenceName;
00378     }
00379
00380     // Set the Mate Reference ID.
00381     myRecordPtr->myMateReferenceID =
00382         header.getReferenceID(myMateReferenceName);
00383
00384     return true;
00385 }

bool SamRecord::setQuality ( const char *  quality  )

Sets the quality to the specified quality string.

This is a SAM formatted quality string. Internal processing handles switching between SAM/BAM formats when read/written.

Parameters:
quality SAM quality string.
Returns:
true if successfully set, false if not.

Definition at line 423 of file SamRecord.cpp.

00424 {
00425     myStatus = SamStatus::SUCCESS;
00426     myQuality = quality;
00427     myIsBufferSynced = false;
00428     myIsQualityBufferValid = false;
00429     return true;
00430 }

bool SamRecord::setReadName ( const char *  readName  )

Set QNAME to the passed in name.

Parameters:
readName the readname to set the QNAME to.
Returns:
true if successfully set, false if not.

Definition at line 261 of file SamRecord.cpp.

00262 {
00263     myReadName = readName;
00264     myIsBufferSynced = false;
00265     myIsReadNameBufferValid = false;
00266     myStatus = SamStatus::SUCCESS;
00267
00268     // The read name must at least have some length, otherwise this is a parsing
00269     // error.
00270     if(myReadName.Length() == 0)
00271     {
00272         // Invalid - reset ReadName return false.
00273         myReadName = DEFAULT_READ_NAME;
00274         myRecordPtr->myReadNameLength = DEFAULT_READ_NAME_LENGTH;
00275         myStatus.setStatus(SamStatus::INVALID, "0 length Query Name.");
00276         return(false);
00277     }
00278
00279     return true;
00280 }

void SamRecord::setReference ( GenomeSequence *  reference  )

Set the reference to the specified genome sequence object.

Parameters:
reference pointer to the GenomeSequence object.

Definition at line 246 of file SamRecord.cpp.

Referenced by SamFile::GetNumOverlaps(), SamFile::readIndexedRecord(), SamFile::ReadRecord(), SamFile::validateSortOrder(), and SamFile::WriteRecord().

00247 {
00248     myRefPtr = reference;
00249 }

bool SamRecord::setReferenceName ( SamFileHeader &  header,
const char *  referenceName
)

Set the reference name to the specified name, using the header to determine the reference id.

Parameters:
header SAM/BAM header to use to determine the reference id.
referenceName reference name to use.
Returns:
true if successfully set, false if not

Definition at line 291 of file SamRecord.cpp.

00293 {
00294     myStatus = SamStatus::SUCCESS;
00295
00296     myReferenceName = referenceName;
00297     myRecordPtr->myReferenceID = header.getReferenceID(referenceName);
00298
00299     return true;
00300 }

bool SamRecord::setSequence ( const char *  seq  )

Sets the sequence to the specified sequence string.

This is a SAM formatted sequence string. Internal processing handles switching between SAM/BAM formats when read/written.

Parameters:
seq SAM sequence string. May contain '='.
Returns:
true if successfully set, false if not.

Definition at line 410 of file SamRecord.cpp.

00411 {
00412     myStatus = SamStatus::SUCCESS;
00413     mySequence = seq;
00414     mySeqWithEq.clear();
00415     mySeqWithoutEq.clear();
00416
00417     myIsBufferSynced = false;
00418     myIsSequenceBufferValid = false;
00419     return true;
00420 }

void SamRecord::setSequenceTranslation ( SequenceTranslation  translation  )

Set the type of sequence translation to use when getting the sequence.

The default type (if this method is never called) is NONE (the sequence is left as-is). Can be over-ridden by using the accessors that take a SequenceTranslation parameter.

Parameters:
translation type of sequence translation to use.

Definition at line 255 of file SamRecord.cpp.

Referenced by SamFile::GetNumOverlaps(), SamFile::readIndexedRecord(), SamFile::ReadRecord(), and SamFile::validateSortOrder().

00256 {
00257     mySequenceTranslation = translation;
00258 }

SamStatus::Status SamRecord::writeRecordBuffer ( IFILE  filePtr,
SequenceTranslation  translation
)

Write the record as a BAM into the specified file.

Parameters:
filePtr file to write the BAM record into.
translation type of sequence translation to use.
Returns:
status of the write.

Definition at line 630 of file SamRecord.cpp.

00632 {
00633     myStatus = SamStatus::SUCCESS;
00634     if((filePtr == NULL) || (filePtr->isOpen() == false))
00635     {
00636         // File is not open, return failure.
00637         myStatus.setStatus(SamStatus::FAIL_ORDER,
00638                            "Can't write to an unopened file.");
00639         return(SamStatus::FAIL_ORDER);
00640     }
00641
00642     if((myIsBufferSynced == false) ||
00643        (myBufferSequenceTranslation != translation))
00644     {
00645         if(!fixBuffer(translation))
00646         {
00647             return(myStatus.getStatus());
00648         }
00649     }
00650
00651     // Write the record.
00652     unsigned int numBytesToWrite = myRecordPtr->myBlockSize + sizeof(int32_t);
00653     unsigned int numBytesWritten =
00654         ifwrite(filePtr, myRecordPtr, numBytesToWrite);
00655
00656     // Return status based on if the correct number of bytes were written.
00657     if(numBytesToWrite == numBytesWritten)
00658     {
00659         return(SamStatus::SUCCESS);
00660     }
00661     // The correct number of bytes were not written.
00662     myStatus.setStatus(SamStatus::FAIL_IO, "Failed to write the entire record.");
00663     return(SamStatus::FAIL_IO);
00664 }

SamStatus::Status SamRecord::writeRecordBuffer ( IFILE  filePtr  )

Write the record as a BAM into the specified file.

Parameters:
filePtr file to write the BAM record into.
Returns:
status of the write.

Definition at line 623 of file SamRecord.cpp.

00624 {
00625     return(writeRecordBuffer(filePtr, mySequenceTranslation));
00626 }

The documentation for this class was generated from the following files:
Generated on Thu Dec 9 12:22:23 2010 for StatGen Software by  doxygen 1.6.3
