SamRecord Class Reference

Class providing an easy to use interface to get/set/operate on the fields in a SAM/BAM record. More...

#include <SamRecord.h>

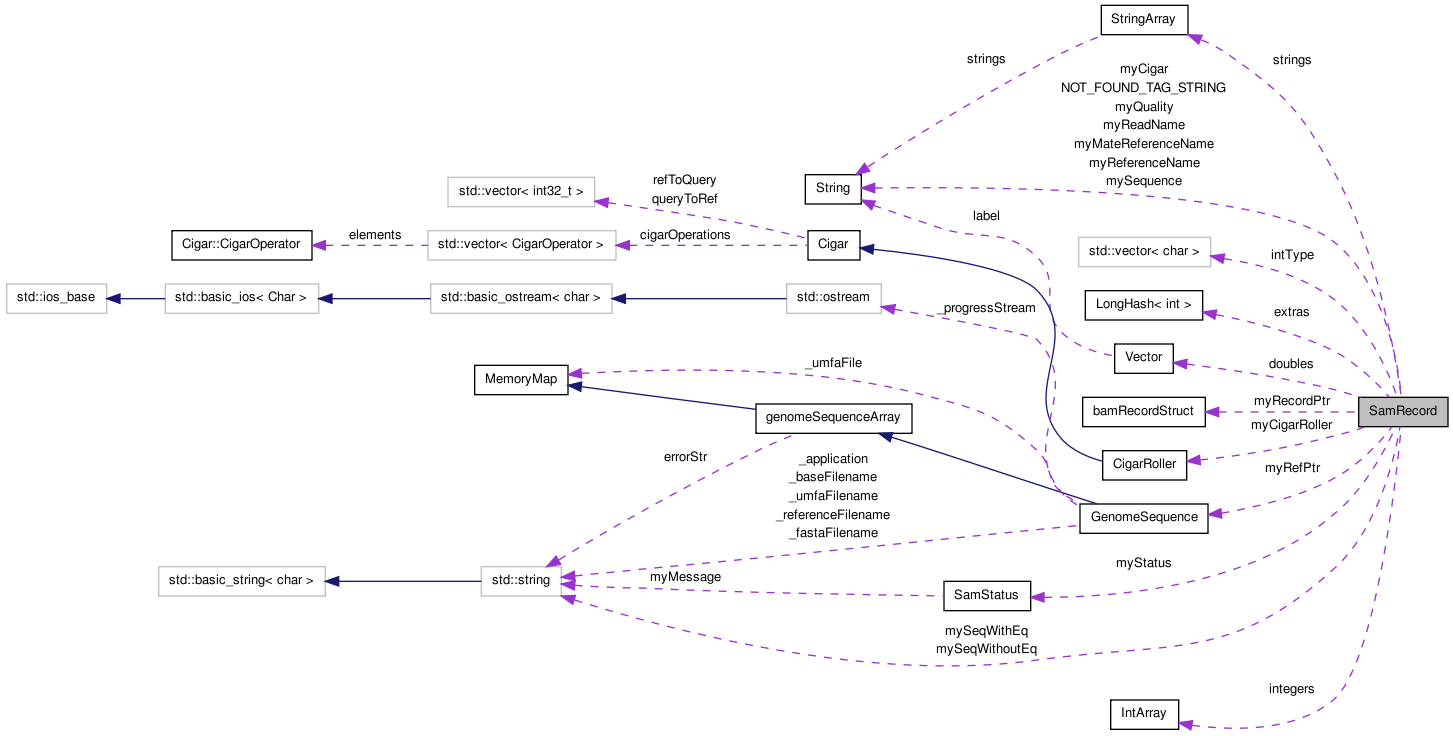

Collaboration diagram for SamRecord:

[legend]

List of all members.

Public Types
enum	SequenceTranslation { NONE, EQUAL, BASES }
	Enum containing the settings on how to translate the sequence if a reference is available. More...
Public Member Functions
	SamRecord ()
	Default Constructor.
	SamRecord (ErrorHandler::HandlingType errorHandlingType)
	Constructor that sets the error handling type.
	~SamRecord ()
	Destructor.
void	resetRecord ()
	Reset the fields of the record to a default value.
bool	isValid (SamFileHeader &header)
	Returns whether or not the record is valid, setting the status to indicate success or failure.
void	setReference (GenomeSequence *reference)
	Set the reference to the specified genome sequence object.
void	setSequenceTranslation (SequenceTranslation translation)
	Set the type of sequence translation to use when getting the sequence.
const SamStatus &	getStatus ()
	Returns the status associated with the last method that sets the status.
Set Alignment Data
Set methods for record fields. All of the "set" methods set the status to indicate success or the failure reason.
bool	setReadName (const char *readName)
	Set QNAME to the passed in name.
bool	setFlag (uint16_t flag)
	Set the bitwise FLAG to the specified value.
bool	setReferenceName (SamFileHeader &header, const char *referenceName)
	Set the reference sequence name (RNAME) to the specified name, using the header to determine the reference id.
bool	set1BasedPosition (int32_t position)
	Set the leftmost position (POS) using the specified 1-based (SAM format) value.
bool	set0BasedPosition (int32_t position)
	Set the leftmost position using the specified 0-based (BAM format) value.
bool	setMapQuality (uint8_t mapQuality)
	Set the mapping quality (MAPQ).
bool	setCigar (const char *cigar)
	Set the CIGAR to the specified SAM formatted cigar string.
bool	setCigar (const Cigar &cigar)
	Set the CIGAR to the specified Cigar object.
bool	setMateReferenceName (SamFileHeader &header, const char *mateReferenceName)
	Set the mate/next fragment's reference sequence name (RNEXT) to the specified name, using the header to determine the mate reference id.
bool	set1BasedMatePosition (int32_t matePosition)
	Set the mate/next fragment's leftmost position (PNEXT) using the specified 1-based (SAM format) value.
bool	set0BasedMatePosition (int32_t matePosition)
	Set the mate/next fragment's leftmost position using the specified 0-based (BAM format) value.
bool	setInsertSize (int32_t insertSize)
	Sets the inferred insert size (ISIZE)/observed template length (TLEN).
bool	setSequence (const char *seq)
	Sets the sequence (SEQ) to the specified SAM formatted sequence string.
bool	setQuality (const char *quality)
	Sets the quality (QUAL) to the specified SAM formatted quality string.
bool	shiftIndelsLeft ()
	Shift the indels (if any) to the left by updating the CIGAR.
SamStatus::Status	setBuffer (const char *fromBuffer, uint32_t fromBufferSize, SamFileHeader &header)
	Sets the SamRecord to contain the information in the BAM formatted fromBuffer.
SamStatus::Status	setBufferFromFile (IFILE filePtr, SamFileHeader &header)
	Read the BAM record from a file.
Set Tag Data
Set methods for tags.
bool	addIntTag (const char *tag, int32_t value)
	Add the specified integer tag to the record.
bool	addTag (const char *tag, char vtype, const char *value)
	Add the specified tag,vtype,value to the record.
void	clearTags ()
	Clear the tags in this record.
bool	rmTag (const char *tag, char type)
	Remove a tag.
bool	rmTags (const char *tags)
	Remove tags.
Get Alignment Data
Get methods for record fields. All of the "get" methods set the status to indicate success or the failure reason.
const void *	getRecordBuffer ()
	Get a const pointer to the buffer that contains the BAM representation of the record.
const void *	getRecordBuffer (SequenceTranslation translation)
	Get a const pointer to the buffer that contains the BAM representation of the record using the specified translation on the sequence.
SamStatus::Status	writeRecordBuffer (IFILE filePtr)
	Write the record as a BAM into the specified already opened file.
SamStatus::Status	writeRecordBuffer (IFILE filePtr, SequenceTranslation translation)
	Write the record as a BAM into the specified already opened file using the specified translation on the sequence.
int32_t	getBlockSize ()
	Get the block size of the record (BAM format).
const char *	getReferenceName ()
	Get the reference sequence name (RNAME) of the record.
int32_t	getReferenceID ()
	Get the reference sequence id of the record (BAM format rid).
int32_t	get1BasedPosition ()
	Get the 1-based(SAM) leftmost position (POS) of the record.
int32_t	get0BasedPosition ()
	Get the 0-based(BAM) leftmost position of the record.
uint8_t	getReadNameLength ()
	Get the length of the readname (QNAME) including the null.
uint8_t	getMapQuality ()
	Get the mapping quality (MAPQ) of the record.
uint16_t	getBin ()
	Get the BAM bin for the record.
uint16_t	getCigarLength ()
	Get the length of the BAM formatted CIGAR.
uint16_t	getFlag ()
	Get the flag (FLAG).
int32_t	getReadLength ()
	Get the length of the read.
const char *	getMateReferenceName ()
	Get the mate/next fragment's reference sequence name (RNEXT).
const char *	getMateReferenceNameOrEqual ()
	Get the mate/next fragment's reference sequence name (RNEXT), returning "=" if it is the same as the reference name, unless they are both "*" in which case "*" is returned.
int32_t	getMateReferenceID ()
	Get the mate reference id of the record (BAM format: mate_rid/next_refID).
int32_t	get1BasedMatePosition ()
	Get the 1-based(SAM) leftmost mate/next fragment's position (PNEXT).
int32_t	get0BasedMatePosition ()
	Get the 0-based(BAM) leftmost mate/next fragment's position.
int32_t	getInsertSize ()
	Get the inferred insert size of the read pair (ISIZE) or observed template length (TLEN).
int32_t	get0BasedAlignmentEnd ()
	Returns the 0-based inclusive rightmost position of the clipped sequence.
int32_t	get1BasedAlignmentEnd ()
	Returns the 1-based inclusive rightmost position of the clipped sequence.
int32_t	getAlignmentLength ()
	Returns the length of the clipped sequence, returning 0 if the cigar is '*'.
int32_t	get0BasedUnclippedStart ()
	Returns the 0-based inclusive left-most position adjusted for clipped bases.
int32_t	get1BasedUnclippedStart ()
	Returns the 1-based inclusive left-most position adjusted for clipped bases.
int32_t	get0BasedUnclippedEnd ()
	Returns the 0-based inclusive right-most position adjusted for clipped bases.
int32_t	get1BasedUnclippedEnd ()
	Returns the 1-based inclusive right-most position adjusted for clipped bases.
const char *	getReadName ()
	Returns the SAM formatted Read Name (QNAME).
const char *	getCigar ()
	Returns the SAM formatted CIGAR string.
const char *	getSequence ()
	Returns the SAM formatted sequence string (SEQ), translating the base as specified by setSequenceTranslation.
const char *	getSequence (SequenceTranslation translation)
	Returns the SAM formatted sequence string (SEQ) performing the specified sequence translation.
const char *	getQuality ()
	Returns the SAM formatted quality string (QUAL).
char	getSequence (int index)
	Get the sequence base at the specified index into this sequence 0 to readLength - 1, translating the base as specified by setSequenceTranslation.
char	getSequence (int index, SequenceTranslation translation)
	Get the sequence base at the specified index into this sequence 0 to readLength - 1 performing the specified sequence translation.
char	getQuality (int index)
	Get the quality character at the specified index into the quality 0 to readLength - 1.
Cigar *	getCigarInfo ()
	Returns a pointer to the Cigar object associated with this record.
uint32_t	getNumOverlaps (int32_t start, int32_t end)
	Return the number of bases in this read that overlap the passed in region.
bool	getFields (bamRecordStruct &recStruct, String &readName, String &cigar, String &sequence, String &quality)
	Returns the values of all fields except the tags.
bool	getFields (bamRecordStruct &recStruct, String &readName, String &cigar, String &sequence, String &quality, SequenceTranslation translation)
	Returns the values of all fields except the tags using the specified sequence translation.
GenomeSequence *	getReference ()
	Returns a pointer to the genome sequence object associated with this record if it was set (NULL if it was not set).
Get Tag Methods
Get methods for obtaining information on tags.
uint32_t	getTagLength ()
	Returns the length of the BAM formatted tags.
bool	getNextSamTag (char *tag, char &vtype, void **value)
	Get the next tag from the record.
void	resetTagIter ()
	Reset the tag iterator to the beginning of the tags.
bool	isIntegerType (char vtype) const
	Returns whether or not the specified vtype is an integer type.
bool	isDoubleType (char vtype) const
	Returns whether or not the specified vtype is a double type.
bool	isCharType (char vtype) const
	Returns whether or not the specified vtype is a char type.
bool	isStringType (char vtype) const
	Returns whether or not the specified vtype is a string type.
bool	getTagsString (const char *tags, String &returnString, char delim= '\t')
	Get the string representation of the tags from the record, formatted as TAG:TYPE:VALUE<delim>TAG:TYPE:VALUE.
String *	getStringTag (const char *tag)
	Get the string value for the specified tag.
int *	getIntegerTag (const char *tag)
	Get the integer value for the specified tag.
double *	getDoubleTag (const char *tag)
	Get the double value for the specified tag.
String &	getString (const char *tag)
	Get the string value for the specified tag.
int &	getInteger (const char *tag)
	Get the integer value for the specified tag.
double &	getDouble (const char *tag)
	Get the double value for the specified tag.
bool	checkString (const char *tag)
	Check if the specified tag contains a string.
bool	checkInteger (const char *tag)
	Check if the specified tag contains a string.
bool	checkDouble (const char *tag)
	Check if the specified tag contains a string.
bool	checkTag (const char *tag, char type)
	Check if the specified tag contains a value of the specified vtype.

---

Detailed Description

Class providing an easy to use interface to get/set/operate on the fields in a SAM/BAM record.

Definition at line 51 of file SamRecord.h.

---

Member Enumeration Documentation

enum SamRecord::SequenceTranslation

Enum containing the settings on how to translate the sequence if a reference is available.

If no reference is available, no translation is done.

Enumerator:

NONE	Leave the sequence as is.
EQUAL	Translate bases that match the reference to '='.
BASES	Translate '=' to the actual base.

Definition at line 57 of file SamRecord.h.

                             {
        NONE,   ///< Leave the sequence as is.
        EQUAL,  ///< Translate bases that match the reference to '='
        BASES,  ///< Translate '=' to the actual base.
    };

---

Constructor & Destructor Documentation

SamRecord::SamRecord

(

ErrorHandler::HandlingType

errorHandlingType

)

Constructor that sets the error handling type.

Parameters:

errorHandlingType

how to handle errors.

Definition at line 53 of file SamRecord.cpp.

References resetRecord().

    : myStatus(errorHandlingType),
      myRefPtr(NULL),
      mySequenceTranslation(NONE)
{
    int32_t defaultAllocSize = DEFAULT_BLOCK_SIZE + sizeof(int32_t);

    myRecordPtr =
        (bamRecordStruct *) malloc(defaultAllocSize);

    myCigarTempBuffer = NULL;
    myCigarTempBufferAllocatedSize = 0;

    allocatedSize = defaultAllocSize;

    resetRecord();
}

---

Member Function Documentation

bool SamRecord::addIntTag	(	const char *	tag,
		int32_t	value
	)

Add the specified integer tag to the record.

Internal processing handles switching between SAM/BAM formats when read/written and determining the type for BAM format. If the tag is already there this code will replace it if the specified value is different.

Parameters:

	tag	two character tag to be added to the SAM/BAM record.
	value	value for the specified tag.

Returns:

true if the tag was successfully added, false otherwise.

Definition at line 631 of file SamRecord.cpp.

References SamStatus::INVALID, SamStatus::setStatus(), and SamStatus::SUCCESS.

Referenced by addTag().

{
    myStatus = SamStatus::SUCCESS;
    int key = 0;
    int index = 0;
    char bamvtype;

    int tagBufferSize = 0;

    // First check to see if the tags need to be synced to the buffer.
    if(myNeedToSetTagsFromBuffer)
    {
        if(!setTagsFromBuffer())
        {
            // Failed to read tags from the buffer, so cannot add new ones.
            return(false);
        }
    }

    // Ints come in as int.  But it can be represented in fewer bits.
    // So determine a more specific type that is in line with the
    // types for BAM files.
    // First check to see if it is a negative.
    if(value < 0)
    {
        // The int is negative, so it will need to use a signed type.
        // See if it is greater than the min value for a char.
        if(value > std::numeric_limits<char>::min())
        {
            // It can be stored in a signed char.
            bamvtype = 'c';
            tagBufferSize += 4;
        }
        else if(value > std::numeric_limits<short>::min())
        {
            // It fits in a signed short.
            bamvtype = 's';
            tagBufferSize += 5;
        }
        else
        {
            // Just store it as a signed int.
            bamvtype = 'i';
            tagBufferSize += 7;
        }
    }
    else
    {
        // It is positive, so an unsigned type can be used.
        if(value < std::numeric_limits<unsigned char>::max())
        {
            // It is under the max of an unsigned char.
            bamvtype = 'C';
            tagBufferSize += 4;
        }
        else if(value < std::numeric_limits<unsigned short>::max())
        {
            // It is under the max of an unsigned short.
            bamvtype = 'S';
            tagBufferSize += 5;
        }
        else
        {
            // Just store it as an unsigned int.
            bamvtype = 'I';
            tagBufferSize += 7;
        }
    }

    // Check to see if the tag is already there.
    key = MAKEKEY(tag[0], tag[1], bamvtype);
    unsigned int hashIndex = extras.Find(key);
    if(hashIndex != LH_NOTFOUND)
    {
        // Tag was already found.
        index = extras[hashIndex];

        // First check to see if the value changed.
        if((integers[index] == value) && (intType[index] == bamvtype))
        {
            // The value has not changed, so do nothing.
            return(true);
        }
        else
        {
            // Not the same value, so adjust the settings.
            // Subtract the size of the previous tag from tagBufferSize to get
            // the adjusted size.
            switch(intType[index])
            {
                case 'c':
                case 'C':
                    tagBufferSize -= 4;
                    break;
                case 's':
                case 'S':
                    tagBufferSize -= 5;
                    break;
                case 'i':
                case 'I':
                    tagBufferSize -= 7;
                    break;
                default:
                myStatus.setStatus(SamStatus::INVALID,
                                   "unknown tag inttype type found.\n");
                return(false);
            }

            // Update the integer value and type.
            integers[index] = value;
            intType[index] = bamvtype;
        }
    }
    else
    {
        // Tag is not already there, so add it.
        index = integers.Length();

        integers.Push(value);
        intType.push_back(bamvtype);

        extras.Add(key, index);
    }

    // The buffer tags are now out of sync.
    myNeedToSetTagsInBuffer = true;
    myIsTagsBufferValid = false;
    myIsBufferSynced = false;
    myTagBufferSize += tagBufferSize;

    return(true);
}

bool SamRecord::addTag	(	const char *	tag,
		char	vtype,
		const char *	value
	)

Add the specified tag,vtype,value to the record.

Vtype can be SAM/BAM format. Internal processing handles switching between SAM/BAM formats when read/written. If the tag is already there this code will replace it if the specified value is different.

Parameters:

	tag	two character tag to be added to the SAM/BAM record.
	vtype	vtype of the specified value - either SAM/BAM vtypes.
	value	value as a string for the specified tag.

Returns:

true if the tag was successfully added, false otherwise.

Definition at line 768 of file SamRecord.cpp.

References addIntTag(), SamStatus::FAIL_PARSE, SamStatus::setStatus(), and SamStatus::SUCCESS.

{
    if(vtype == 'i')
    {
        // integer type.  Call addIntTag to handle it.
        int intVal = atoi(valuePtr);
        return(addIntTag(tag, intVal));
    }

    // Non-int type.
    myStatus = SamStatus::SUCCESS;
    bool status = true; // default to successful.
    int key = 0;
    int index = 0;

    int tagBufferSize = 0;

    // First check to see if the tags need to be synced to the buffer.
    if(myNeedToSetTagsFromBuffer)
    {
        if(!setTagsFromBuffer())
        {
            // Failed to read tags from the buffer, so cannot add new ones.
            return(false);
        }
    }

    // First check to see if the tag is already there.
    key = MAKEKEY(tag[0], tag[1], vtype);
    unsigned int hashIndex = extras.Find(key);
    if(hashIndex != LH_NOTFOUND)
    {
        // The key was found in the hash, so get the lookup index.
        index = extras[hashIndex];

        // Adjust the currently pointed to value to the new setting.
        switch (vtype)
        {
            case 'A' :
                // First check to see if the value changed.
                if(integers[index] == (const int)*(valuePtr))
                {
                    // The value has not changed, so do nothing.
                    return(true);
                }
                else
                {
                    // Tag buffer size doesn't change between different 'A' entries.
                    integers[index] = (const int)*(valuePtr);
                    intType[index] = vtype;
                }
                break;
            case 'Z' :
                // First check to see if the value changed.
                if(strings[index] == valuePtr)
                {
                    // The value has not changed, so do nothing.
                    return(true);
                }
                else
                {
                    // Adjust the tagBufferSize by removing the size of the old string.
                    tagBufferSize -= strings[index].Length();
                    strings[index] = valuePtr;
                    // Adjust the tagBufferSize by adding the size of the new string.
                    tagBufferSize += strings[index].Length();
                }
                break;
            case 'f' :
                // First check to see if the value changed.
                if(doubles[index] == atof(valuePtr))
                {
                    // The value has not changed, so do nothing.
                    return(true);
                }
                else
                {
                    // Tag buffer size doesn't change between different 'f' entries.
                    doubles[index] = atof(valuePtr);
                }
                break;
            default :
                fprintf(stderr,
                        "samFile::ReadSAM() - Unknown custom field of type %c\n",
                        vtype);
                myStatus.setStatus(SamStatus::FAIL_PARSE,
                                   "Unknown custom field in a tag");
                status = false;
                break;
        }
    }
    else
    {
        // The key was found not found in the hash, so add it.
        switch (vtype)
        {
            case 'A' :
                index = integers.Length();
                integers.Push((const int)*(valuePtr));
                intType.push_back(vtype);
                tagBufferSize += 4;
                break;
            case 'Z' :
                index = strings.Length();
                strings.Push(valuePtr);
                tagBufferSize += 4 + strings.Last().Length();
                break;
            case 'f' :
                index = doubles.Length();
                doubles.Push(atof(valuePtr));
                tagBufferSize += 7;
                break;
            default :
                fprintf(stderr,
                        "samFile::ReadSAM() - Unknown custom field of type %c\n",
                        vtype);
                myStatus.setStatus(SamStatus::FAIL_PARSE,
                                   "Unknown custom field in a tag");
                status = false;
                break;
        }
        if(status)
        {
            // If successful, add the key to extras.
            extras.Add(key, index);
        }
    }

    // Only add the tag if it has so far been successfully processed.
    if(status)
    {
        // The buffer tags are now out of sync.
        myNeedToSetTagsInBuffer = true;
        myIsTagsBufferValid = false;
        myIsBufferSynced = false;
        myTagBufferSize += tagBufferSize;
    }
    return(status);
}

bool SamRecord::checkDouble

(

const char *

tag

)

[inline]

Check if the specified tag contains a string.

Does not set SamStatus.

Parameters:

tag

SAM tag to check contents of.

Returns:

true if the value associated with the tag is a string.

Definition at line 600 of file SamRecord.h.

References checkTag().

{ return checkTag(tag, 'f'); }

bool SamRecord::checkInteger

(

const char *

tag

)

[inline]

Check if the specified tag contains a string.

Does not set SamStatus.

Parameters:

tag

SAM tag to check contents of.

Returns:

true if the value associated with the tag is a string.

Definition at line 594 of file SamRecord.h.

References checkTag().

{ return checkTag(tag, 'i'); }

bool SamRecord::checkString

(

const char *

tag

)

[inline]

Check if the specified tag contains a string.

Does not set SamStatus.

Parameters:

tag

SAM tag to check contents of.

Returns:

true if the value associated with the tag is a string.

Definition at line 588 of file SamRecord.h.

References checkTag().

{ return checkTag(tag, 'Z'); }

bool SamRecord::checkTag	(	const char *	tag,
		char	type
	)

Check if the specified tag contains a value of the specified vtype.

Does not set SamStatus.

Parameters:

	tag	SAM tag to check contents of.
	type	value type to check if the SAM tag matches.

Returns:

true if the value associated with the tag is a string.

Definition at line 2285 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by checkDouble(), checkInteger(), and checkString().

{
    // Init to success.
    myStatus = SamStatus::SUCCESS;
    // Parse the buffer if necessary.
    if(myNeedToSetTagsFromBuffer)
    {
        if(!setTagsFromBuffer())
        {
            // Failed to read the tags from the buffer, so cannot
            // get tags.  setTagsFromBuffer set the error.
            return("");
        }
    }

    int key = MAKEKEY(tag[0], tag[1], type);

    return (extras.Find(key) != LH_NOTFOUND);
}

void SamRecord::clearTags

(

)

Clear the tags in this record.

Does not set SamStatus.

Definition at line 909 of file SamRecord.cpp.

References resetTagIter().

Referenced by resetRecord().

{
    if(extras.Entries() != 0)
    {
        extras.Clear();
    }
    strings.Clear();
    integers.Clear();
    intType.clear();
    doubles.Clear();
    myTagBufferSize = 0;
    resetTagIter();
}

int32_t SamRecord::get0BasedAlignmentEnd

(

)

Returns the 0-based inclusive rightmost position of the clipped sequence.

Returns:

0-based inclusive rightmost position

Definition at line 1393 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by get0BasedUnclippedEnd(), get1BasedAlignmentEnd(), Pileup< PILEUP_TYPE, FUNC_CLASS >::processAlignment(), Pileup< PILEUP_TYPE, FUNC_CLASS >::processAlignmentRegion(), and SamFile::readIndexedRecord().

{
    myStatus = SamStatus::SUCCESS;
    if(myAlignmentLength == -1)
    {
        // Alignment end has not been set, so calculate it.
        parseCigar();
    }
    // If alignment length > 0, subtract 1 from it to get the end.
    if(myAlignmentLength == 0)
    {
        // Length is 0, just return the start position.
        return(myRecordPtr->myPosition);
    }
    return(myRecordPtr->myPosition + myAlignmentLength - 1);
}

int32_t SamRecord::get0BasedMatePosition

(

)

Get the 0-based(BAM) leftmost mate/next fragment's position.

Returns:

0-based leftmost position.

Definition at line 1378 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    return myRecordPtr->myMatePosition;
}

int32_t SamRecord::get0BasedPosition

(

)

Get the 0-based(BAM) leftmost position of the record.

Returns:

0-based leftmost position.

Definition at line 1245 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by SamTags::createMDTag(), getNumOverlaps(), Pileup< PILEUP_TYPE, FUNC_CLASS >::processAlignment(), Pileup< PILEUP_TYPE, FUNC_CLASS >::processAlignmentRegion(), SamFile::readIndexedRecord(), SamQuerySeqWithRefIter::reset(), SamFilter::softClip(), and SamFile::validateSortOrder().

{
    myStatus = SamStatus::SUCCESS;
    return myRecordPtr->myPosition;
}

int32_t SamRecord::get0BasedUnclippedEnd

(

)

Returns the 0-based inclusive right-most position adjusted for clipped bases.

Returns:

0-based inclusive rightmost position including clips.

Definition at line 1452 of file SamRecord.cpp.

References get0BasedAlignmentEnd().

Referenced by get1BasedUnclippedEnd().

{
    // myUnclippedEndOffset will be set by get0BasedAlignmentEnd if the
    // cigar has not yet been parsed, so no need to check it here.
    return(get0BasedAlignmentEnd() + myUnclippedEndOffset);
}

int32_t SamRecord::get0BasedUnclippedStart

(

)

Returns the 0-based inclusive left-most position adjusted for clipped bases.

Returns:

0-based inclusive leftmost position including clips.

Definition at line 1432 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by get1BasedUnclippedStart().

{
    myStatus = SamStatus::SUCCESS;
    if(myUnclippedStartOffset == -1)
    {
        // Unclipped has not yet been calculated, so parse the cigar to get it
        parseCigar();
    }
    return(myRecordPtr->myPosition - myUnclippedStartOffset);
}

int32_t SamRecord::get1BasedAlignmentEnd

(

)

Returns the 1-based inclusive rightmost position of the clipped sequence.

Returns:

1-based inclusive rightmost position

Definition at line 1412 of file SamRecord.cpp.

References get0BasedAlignmentEnd().

Referenced by getBin().

{
    return(get0BasedAlignmentEnd() + 1);
}

int32_t SamRecord::get1BasedMatePosition

(

)

Get the 1-based(SAM) leftmost mate/next fragment's position (PNEXT).

Returns:

1-based leftmost position.

Definition at line 1371 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    return (myRecordPtr->myMatePosition + 1);
}

int32_t SamRecord::get1BasedPosition

(

)

Get the 1-based(SAM) leftmost position (POS) of the record.

Returns:

1-based leftmost position.

Definition at line 1238 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by SamValidator::isValid().

{
    myStatus = SamStatus::SUCCESS;
    return (myRecordPtr->myPosition + 1);
}

int32_t SamRecord::get1BasedUnclippedEnd

(

)

Returns the 1-based inclusive right-most position adjusted for clipped bases.

Returns:

1-based inclusive rightmost position including clips.

Definition at line 1461 of file SamRecord.cpp.

References get0BasedUnclippedEnd().

{
    return(get0BasedUnclippedEnd() + 1);
}

int32_t SamRecord::get1BasedUnclippedStart

(

)

Returns the 1-based inclusive left-most position adjusted for clipped bases.

Returns:

1-based inclusive leftmost position including clips.

Definition at line 1445 of file SamRecord.cpp.

References get0BasedUnclippedStart().

{
    return(get0BasedUnclippedStart() + 1);
}

int32_t SamRecord::getAlignmentLength

(

)

Returns the length of the clipped sequence, returning 0 if the cigar is '*'.

Returns:

length of the clipped sequence.

Definition at line 1419 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    if(myAlignmentLength == -1)
    {
        // Alignment end has not been set, so calculate it.
        parseCigar();
    }
    // Return the alignment length.
    return(myAlignmentLength);
}

uint16_t SamRecord::getBin

(

)

Get the BAM bin for the record.

Returns:

BAM bin

Definition at line 1273 of file SamRecord.cpp.

References get1BasedAlignmentEnd(), and SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    if(!myIsBinValid)
    {
        // The bin that is set in the record is not valid, so
        // reset it.
        myRecordPtr->myBin =
            bam_reg2bin(myRecordPtr->myPosition, get1BasedAlignmentEnd());
        myIsBinValid = true;
    }
    return(myRecordPtr->myBin);
}

int32_t SamRecord::getBlockSize

(

)

Get the block size of the record (BAM format).

Returns:

BAM block size of the record.

Definition at line 1207 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    // If the buffer isn't synced, sync the buffer to determine the
    // block size.
    if(myIsBufferSynced == false)
    {
        // Since this just returns the block size, the translation of
        // the sequence does not matter, so just use the currently set
        // value.
        fixBuffer(myBufferSequenceTranslation);
    }
    return myRecordPtr->myBlockSize;
}

const char * SamRecord::getCigar

(

)

Returns the SAM formatted CIGAR string.

Returns:

cigar string.

Definition at line 1481 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by getFields(), and SamValidator::isValidCigar().

{
    myStatus = SamStatus::SUCCESS;
    if(myCigar.Length() == 0)
    {
        // 0 Length, means that it is in the buffer, but has not yet
        // been synced to the string, so do the sync.
        parseCigarBinary();
    }
    return myCigar.c_str();
}

Cigar * SamRecord::getCigarInfo

(

)

Returns a pointer to the Cigar object associated with this record.

The object is essentially read-only, only allowing modifications due to lazy evaluations.

Returns:

pointer to the Cigar object.

Definition at line 1752 of file SamRecord.cpp.

Referenced by SamTags::createMDTag(), getSequence(), SamQuerySeqWithRefIter::reset(), and SamFilter::softClip().

{
    // Check to see whether or not the Cigar has already been
    // set - this is determined by checking if alignment length
    // is set since alignment length and the cigar are set
    // at the same time.
    if(myAlignmentLength == -1)
    {
        // Not been set, so calculate it.
        parseCigar();
    }
    return(&myCigarRoller);
}

uint16_t SamRecord::getCigarLength

(

)

Get the length of the BAM formatted CIGAR.

Returns:

length of BAM formatted cigar.

Definition at line 1288 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    // If the cigar buffer is valid
    // then get the length from there.
    if(myIsCigarBufferValid)
    {
        return myRecordPtr->myCigarLength;
    }

    if(myCigarTempBufferLength == -1)
    {
        // The cigar buffer is not valid and the cigar temp buffer is not set,
        // so parse the string.
        parseCigarString();
    }

    // The temp buffer is now set, so return the size.
    return(myCigarTempBufferLength);
}

double * SamRecord::getDoubleTag

(

const char *

tag

)

Get the double value for the specified tag.

Parameters:

tag

tag to retrieve

Returns:

pointer to the tag's double value if found, NULL if not found.

Definition at line 2161 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    // Init to success.
    myStatus = SamStatus::SUCCESS;
    // Parse the buffer if necessary.
    if(myNeedToSetTagsFromBuffer)
    {
        if(!setTagsFromBuffer())
        {
            // Failed to read the tags from the buffer, so cannot
            // get tags.  setTagsFromBuffer set the errors,
            // so just return null.
            return(NULL);
        }
    }

    int key = MAKEKEY(tag[0], tag[1], 'f');
    int offset = extras.Find(key);

    int value;
    if (offset < 0)
    {
        // Failed to find the tag.
        return(NULL);
    }
    else
        value = extras[offset];

    return(&(doubles[value]));
}

bool SamRecord::getFields	(	bamRecordStruct &	recStruct,
		String &	readName,
		String &	cigar,
		String &	sequence,
		String &	quality,
		SequenceTranslation	translation
	)

Returns the values of all fields except the tags using the specified sequence translation.

Parameters:

	recStruct	structure containing the contents of all non-variable length fields.
	readName	read name from the record (return param)
	cigar	cigar string from the record (return param)
	sequence	sequence string from the record (return param)
	quality	quality string from the record (return param)
	translation	type of sequence translation to use.

Returns:

true if all fields were successfully set, false otherwise.

Definition at line 1791 of file SamRecord.cpp.

References getCigar(), getQuality(), getReadName(), getSequence(), and SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    if(myIsBufferSynced == false)
    {
        if(!fixBuffer(translation))
        {
            // failed to set the buffer, return false.
            return(false);
        }
    }
    memcpy(&recStruct, myRecordPtr, sizeof(bamRecordStruct));

    readName = getReadName();
    // Check the status.
    if(myStatus != SamStatus::SUCCESS)
    {
        // Failed to set the fields, return false.
        return(false);
    }
    cigar = getCigar();
    // Check the status.
    if(myStatus != SamStatus::SUCCESS)
    {
        // Failed to set the fields, return false.
        return(false);
    }
    sequence = getSequence(translation);
    // Check the status.
    if(myStatus != SamStatus::SUCCESS)
    {
        // Failed to set the fields, return false.
        return(false);
    }
    quality = getQuality();
    // Check the status.
    if(myStatus != SamStatus::SUCCESS)
    {
        // Failed to set the fields, return false.
        return(false);
    }
    return(true);
}

bool SamRecord::getFields	(	bamRecordStruct &	recStruct,
		String &	readName,
		String &	cigar,
		String &	sequence,
		String &	quality
	)

Returns the values of all fields except the tags.

Parameters:

	recStruct	structure containing the contents of all non-variable length fields.
	readName	read name from the record (return param)
	cigar	cigar string from the record (return param)
	sequence	sequence string from the record (return param)
	quality	quality string from the record (return param)

Returns:

true if all fields were successfully set, false otherwise.

Definition at line 1782 of file SamRecord.cpp.

{
    return(getFields(recStruct, readName, cigar, sequence, quality,
                     mySequenceTranslation));
}

uint16_t SamRecord::getFlag

(

)

Get the flag (FLAG).

Returns:

flag.

Definition at line 1310 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by SamQuerySeqWithRefIter::getNextMatchMismatch(), and SamValidator::isValid().

{
    myStatus = SamStatus::SUCCESS;
    return myRecordPtr->myFlag;
}

int32_t SamRecord::getInsertSize

(

)

Get the inferred insert size of the read pair (ISIZE) or observed template length (TLEN).

Returns:

inferred insert size or observed template length.

Definition at line 1385 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    return myRecordPtr->myInsertSize;
}

int * SamRecord::getIntegerTag

(

const char *

tag

)

Get the integer value for the specified tag.

Parameters:

tag

tag to retrieve pointer to the tag's integer value if found, NULL if not found.

Definition at line 2129 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    // Init to success.
    myStatus = SamStatus::SUCCESS;
    // Parse the buffer if necessary.
    if(myNeedToSetTagsFromBuffer)
    {
        if(!setTagsFromBuffer())
        {
            // Failed to read the tags from the buffer, so cannot
            // get tags.  setTagsFromBuffer set the errors,
            // so just return null.
            return(NULL);
        }
    }

    int key = MAKEKEY(tag[0], tag[1], 'i');
    int offset = extras.Find(key);

    int value;
    if (offset < 0)
    {
        // Failed to find the tag.
        return(NULL);
    }
    else
        value = extras[offset];

    return(&(integers[value]));
}

uint8_t SamRecord::getMapQuality

(

)

Get the mapping quality (MAPQ) of the record.

Returns:

map quality.

Definition at line 1266 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by SamValidator::isValid().

{
    myStatus = SamStatus::SUCCESS;
    return myRecordPtr->myMapQuality;
}

int32_t SamRecord::getMateReferenceID

(

)

Get the mate reference id of the record (BAM format: mate_rid/next_refID).

Returns:

reference id

Definition at line 1364 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    return myRecordPtr->myMateReferenceID;
}

const char * SamRecord::getMateReferenceName

(

)

Get the mate/next fragment's reference sequence name (RNEXT).

If it is equal to the reference name, it still returns the reference name.

Returns:

reference sequence name

Definition at line 1336 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    return myMateReferenceName.c_str();
}

const char * SamRecord::getMateReferenceNameOrEqual

(

)

Get the mate/next fragment's reference sequence name (RNEXT), returning "=" if it is the same as the reference name, unless they are both "*" in which case "*" is returned.

Returns:

reference sequence name or '='

Definition at line 1346 of file SamRecord.cpp.

References getReferenceName(), and SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    if(myMateReferenceName == "*")
    {
        return(myMateReferenceName);
    }
    if(myMateReferenceName == getReferenceName())
    {
        return(FIELD_ABSENT_STRING);
    }
    else
    {
        return(myMateReferenceName);
    }
}

bool SamRecord::getNextSamTag	(	char *	tag,
		char &	vtype,
		void **	value
	)

Get the next tag from the record.

Sets the Status to SUCCESS when a tag is successfully returned or when there are no more tags. Otherwise the status is set to describe why it failed (parsing, etc).

Parameters:

	tag	set to the tag when a tag is read.
	vtype	set to the vtype when a tag is read.
	value	pointer to the value of the tag (will need to cast to int, double, char, or string based on vtype).

Returns:

true if a tag was read, false if there are no more tags.

Definition at line 1878 of file SamRecord.cpp.

References SamStatus::FAIL_PARSE, SamStatus::setStatus(), and SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    if(myNeedToSetTagsFromBuffer)
    {
        if(!setTagsFromBuffer())
        {
            // Failed to read the tags from the buffer, so cannot
            // get tags.
            return(false);
        }
    }

    // Increment the tag index to start looking at the next tag.
    // At the beginning, it is set to -1.
    myLastTagIndex++;
    int maxTagIndex = extras.Capacity();
    if(myLastTagIndex >= maxTagIndex)
    {
        // Hit the end of the tags, return false, no more tags.
        // Status is still success since this is not an error,
        // it is just the end of the list.
        return(false);
    }

    bool tagFound = false;
    // Loop until a tag is found or the end of extras is hit.
    while((tagFound == false) && (myLastTagIndex < maxTagIndex))
    {
        if(extras.SlotInUse(myLastTagIndex))
        {
            // Found a slot to use.
            int key = extras.GetKey(myLastTagIndex);
            getTag(key, tag);
            getTypeFromKey(key, vtype);
            tagFound = true;
            // Get the value associated with the key based on the vtype.
            switch (vtype)
            {
                case 'f' :
                    *value = getDoublePtr(myLastTagIndex);
                    break;
                case 'i' :
                    *value = getIntegerPtr(myLastTagIndex, vtype);
                    if(vtype != 'A')
                    {
                        // Convert all int types to 'i'
                        vtype = 'i';
                    }
                    break;
                case 'Z' :
                    *value = getStringPtr(myLastTagIndex);
                    break;
                default:
                    myStatus.setStatus(SamStatus::FAIL_PARSE,
                                       "Unknown tag type");
                    tagFound = false;
                    break;
            }
        }
        if(!tagFound)
        {
            // Increment the index since a tag was not found.
            myLastTagIndex++;
        }
    }
    return(tagFound);
}

uint32_t SamRecord::getNumOverlaps	(	int32_t	start,
		int32_t	end
	)

Return the number of bases in this read that overlap the passed in region.

Matches & mismatches between the read and the reference are counted as overlaps, but insertions, deletions, skips, clips, and pads are not counted.

Parameters:

	start	inclusive 0-based start position (reference position) of the region to check for overlaps in. (-1 indicates to start at the beginning of the reference.)
	end	exclusive 0-based end position (reference position) of the region to check for overlaps in. (-1 indicates to go to the end of the reference.)

Returns:

number of overlapping bases

Definition at line 1769 of file SamRecord.cpp.

References get0BasedPosition(), and Cigar::getNumOverlaps().

Referenced by SamFile::GetNumOverlaps().

{
    // Determine whether or not the cigar has been parsed, which sets up
    // the cigar roller.  This is determined by checking the alignment length.
    if(myAlignmentLength == -1)
    {
        parseCigar();
    }
    return(myCigarRoller.getNumOverlaps(start, end, get0BasedPosition()));
}

char SamRecord::getQuality

(

int

index

)

Get the quality character at the specified index into the quality 0 to readLength - 1.

Throws an exception if index is out of range.

Parameters:

index

index into the quality string (0 to readLength-1).

Returns:

the quality character at the specified index into the quality.

Definition at line 1705 of file SamRecord.cpp.

References getReadLength(), and BaseUtilities::UNKNOWN_QUALITY_CHAR.

{
    // Determine the read length.
    int32_t readLen = getReadLength();

    // If the read length is 0, return ' ' whose ascii code is below
    // the minimum ascii code for qualities.
    if(readLen == 0)
    {
        return(BaseUtilities::UNKNOWN_QUALITY_CHAR);
    }
    else if((index < 0) || (index >= readLen))
    {
        // Only get here if the index was out of range, so thow an exception.
        String exceptionString = "SamRecord::getQuality(";
        exceptionString += index;
        exceptionString += ") is out of range. Index must be between 0 and ";
        exceptionString += (readLen - 1);
        throw std::runtime_error(exceptionString.c_str());
    }

    if(myQuality.Length() == 0)
    {
        // Parse BAM Quality.
        unsigned char * packedQuality =
            (unsigned char *)myRecordPtr->myData +
            myRecordPtr->myReadNameLength +
            myRecordPtr->myCigarLength * sizeof(int) +
            (myRecordPtr->myReadLength + 1) / 2;
        return(packedQuality[index] + 33);
    }
    else
    {
        // Already have string.
        if((myQuality.Length() == 1) && (myQuality[0] == '*'))
        {
            // Return the unknown quality character.
            return(BaseUtilities::UNKNOWN_QUALITY_CHAR);
        }
        else
        {
            return(myQuality[index]);
        }
    }
}

const char * SamRecord::getQuality

(

)

Returns the SAM formatted quality string (QUAL).

Returns:

quality string.

Definition at line 1564 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by getFields(), and SamValidator::isValidQuality().

{
    myStatus = SamStatus::SUCCESS;
    if(myQuality.Length() == 0)
    {
        // 0 Length, means that it is in the buffer, but has not yet
        // been synced to the string, so do the sync.
        setSequenceAndQualityFromBuffer();
    }
    return myQuality.c_str();
}

int32_t SamRecord::getReadLength

(

)

Get the length of the read.

Returns:

read length.

Definition at line 1317 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by SamQuerySeqWithRefIter::getNextMatchMismatch(), getQuality(), getSequence(), SamValidator::isValidCigar(), SamValidator::isValidQuality(), and SamQuerySeqWithRefIter::reset().

{
    myStatus = SamStatus::SUCCESS;
    if(myIsSequenceBufferValid == false)
    {
        // If the sequence is "*", then return 0.
        if((mySequence.Length() == 1) && (mySequence[0] == '*'))
        {
            return(0);
        }
        // Do not add 1 since it is not null terminated.
        return(mySequence.Length());
    }
    return(myRecordPtr->myReadLength);
}

const char * SamRecord::getReadName

(

)

Returns the SAM formatted Read Name (QNAME).

Returns:

read name.

Definition at line 1468 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by getFields(), SamValidator::isValid(), and SamFile::validateSortOrder().

{
    myStatus = SamStatus::SUCCESS;
    if(myReadName.Length() == 0)
    {
        // 0 Length, means that it is in the buffer, but has not yet
        // been synced to the string, so do the sync.
        myReadName = (char*)&(myRecordPtr->myData);
    }
    return myReadName.c_str();
}

uint8_t SamRecord::getReadNameLength

(

)

Get the length of the readname (QNAME) including the null.

Returns:

length of the read name (including null).

Definition at line 1252 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by SamValidator::isValid().

{
    myStatus = SamStatus::SUCCESS;
    // If the buffer is valid, return the size from there, otherwise get the
    // size from the string length + 1 (ending null).
    if(myIsReadNameBufferValid)
    {
        return(myRecordPtr->myReadNameLength);
    }

    return(myReadName.Length() + 1);
}

const void * SamRecord::getRecordBuffer

(

SequenceTranslation

translation

)

Get a const pointer to the buffer that contains the BAM representation of the record using the specified translation on the sequence.

Parameters:

translation

type of sequence translation to use.

Returns:

const pointer to the buffer that contains the BAM representation of the record.

Definition at line 1137 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    bool status = true;
    // If the buffer is not synced or the sequence in the buffer is not
    // properly translated, fix the buffer.
    if((myIsBufferSynced == false) ||
       (myBufferSequenceTranslation != translation))
    {
        status &= fixBuffer(translation);
    }
    // If the buffer is synced, check to see if the tags need to be synced.
    if(myNeedToSetTagsInBuffer)
    {
        status &= setTagsInBuffer();
    }
    if(!status)
    {
        return(NULL);
    }
    return (const void *)myRecordPtr;
}

const void * SamRecord::getRecordBuffer

(

)

Get a const pointer to the buffer that contains the BAM representation of the record.

Returns:

const pointer to the buffer that contains the BAM representation of the record.

Definition at line 1130 of file SamRecord.cpp.

{
    return(getRecordBuffer(mySequenceTranslation));
}

GenomeSequence * SamRecord::getReference

(

)

Returns a pointer to the genome sequence object associated with this record if it was set (NULL if it was not set).

Returns:

pointer to the GenomeSequence object or NULL if there isn't one.

Definition at line 1839 of file SamRecord.cpp.

Referenced by SamValidator::isValidTags().

{
    return(myRefPtr);
}

int32_t SamRecord::getReferenceID

(

)

Get the reference sequence id of the record (BAM format rid).

Returns:

reference sequence id

Definition at line 1231 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by SamValidator::isValid(), Pileup< PILEUP_TYPE, FUNC_CLASS >::processAlignment(), Pileup< PILEUP_TYPE, FUNC_CLASS >::processAlignmentRegion(), SamFile::readIndexedRecord(), and SamFile::validateSortOrder().

{
    myStatus = SamStatus::SUCCESS;
    return myRecordPtr->myReferenceID;
}

const char * SamRecord::getReferenceName

(

)

Get the reference sequence name (RNAME) of the record.

Returns:

reference sequence name

Definition at line 1224 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by SamTags::createMDTag(), getMateReferenceNameOrEqual(), getSequence(), SamValidator::isValid(), and SamQuerySeqWithRefIter::reset().

{
    myStatus = SamStatus::SUCCESS;
    return myReferenceName.c_str();
}

char SamRecord::getSequence	(	int	index,
		SequenceTranslation	translation
	)

Get the sequence base at the specified index into this sequence 0 to readLength - 1 performing the specified sequence translation.

Throws an exception if index is out of range.

Parameters:

	index	index into the sequence string (0 to readLength-1).
	translation	type of sequence translation to use.

Returns:

the sequence base at the specified index into the sequence.

Definition at line 1583 of file SamRecord.cpp.

References EQUAL, getCigarInfo(), getReadLength(), getReferenceName(), NONE, SamQuerySeqWithRef::seqWithEquals(), and SamQuerySeqWithRef::seqWithoutEquals().

{
    static const char * asciiBases = "=AC.G...T......N";

    // Determine the read length.
    int32_t readLen = getReadLength();

    // If the read length is 0, this method should not be called.
    if(readLen == 0)
    {
        String exceptionString = "SamRecord::getSequence(";
        exceptionString += index;
        exceptionString += ") is not allowed since sequence = '*'";
        throw std::runtime_error(exceptionString.c_str());
    }
    else if((index < 0) || (index >= readLen))
    {
        // Only get here if the index was out of range, so thow an exception.
        String exceptionString = "SamRecord::getSequence(";
        exceptionString += index;
        exceptionString += ") is out of range. Index must be between 0 and ";
        exceptionString += (readLen - 1);
        throw std::runtime_error(exceptionString.c_str());
    }

    // Determine if translation needs to be done.
    if((translation == NONE) || (myRefPtr == NULL))
    {
        // No translation needs to be done.
        if(mySequence.Length() == 0)
        {
            // Parse BAM sequence.
            // TODO - maybe store this pointer - and use that to track when
            // valid?
            unsigned char * packedSequence =
                (unsigned char *)myRecordPtr->myData +
                myRecordPtr->myReadNameLength +
                myRecordPtr->myCigarLength * sizeof(int);

            return(index & 1 ?
                   asciiBases[packedSequence[index / 2] & 0xF] :
                   asciiBases[packedSequence[index / 2] >> 4]);
        }
        // Already have string.
        return(mySequence[index]);
    }
    else
    {
        // Need to translate the sequence either to have '=' or to not
        // have it.
        // First check to see if the sequence has been set.
        if(mySequence.Length() == 0)
        {
            // 0 Length, means that it is in the buffer, but has not yet
            // been synced to the string, so do the sync.
            setSequenceAndQualityFromBuffer();
        }

        // Check the type of translation.
        if(translation == EQUAL)
        {
            // Check whether or not the string has already been
            // retrieved that has the '=' in it.
            if(mySeqWithEq.length() == 0)
            {
                // The string with '=' has not yet been determined,
                // so get the string.
                // Check to see if the sequence is defined.
                if(mySequence == "*")
                {
                    // Sequence is undefined, so no translation necessary.
                    mySeqWithEq = '*';
                }
                else
                {
                    // Sequence defined, so translate it.
                    SamQuerySeqWithRef::seqWithEquals(mySequence.c_str(),
                                                      myRecordPtr->myPosition,
                                                      *(getCigarInfo()),
                                                      getReferenceName(),
                                                      *myRefPtr,
                                                      mySeqWithEq);
                }
            }
            // Sequence is set, so return it.
            return(mySeqWithEq[index]);
        }
        else
        {
            // translation == BASES
            // Check whether or not the string has already been
            // retrieved that does not have the '=' in it.
            if(mySeqWithoutEq.length() == 0)
            {
                // The string with '=' has not yet been determined,
                // so get the string.
                // Check to see if the sequence is defined.
                if(mySequence == "*")
                {
                    // Sequence is undefined, so no translation necessary.
                    mySeqWithoutEq = '*';
                }
                else
                {
                    // Sequence defined, so translate it.
                    // The string without '=' has not yet been determined,
                    // so get the string.
                    SamQuerySeqWithRef::seqWithoutEquals(mySequence.c_str(),
                                                         myRecordPtr->myPosition,
                                                         *(getCigarInfo()),
                                                         getReferenceName(),
                                                         *myRefPtr,
                                                         mySeqWithoutEq);
                }
            }
            // Sequence is set, so return it.
            return(mySeqWithoutEq[index]);
        }
    }
}

char SamRecord::getSequence

(

int

index

)

Get the sequence base at the specified index into this sequence 0 to readLength - 1, translating the base as specified by setSequenceTranslation.

Throws an exception if index is out of range.

Parameters:

index

index into the sequence string (0 to readLength-1).

Returns:

the sequence base at the specified index into the sequence.

Definition at line 1577 of file SamRecord.cpp.

References getSequence().

{
    return(getSequence(index, mySequenceTranslation));
}

const char * SamRecord::getSequence

(

SequenceTranslation

translation

)

Returns the SAM formatted sequence string (SEQ) performing the specified sequence translation.

Parameters:

translation

type of sequence translation to use.

Returns:

sequence string.

Definition at line 1500 of file SamRecord.cpp.

References EQUAL, getCigarInfo(), getReferenceName(), NONE, SamQuerySeqWithRef::seqWithEquals(), SamQuerySeqWithRef::seqWithoutEquals(), and SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    if(mySequence.Length() == 0)
    {
        // 0 Length, means that it is in the buffer, but has not yet
        // been synced to the string, so do the sync.
        setSequenceAndQualityFromBuffer();
    }

    // Determine if translation needs to be done.
    if((translation == NONE) || (myRefPtr == NULL))
    {
        return mySequence.c_str();
    }
    else if(translation == EQUAL)
    {
        if(mySeqWithEq.length() == 0)
        {
            // Check to see if the sequence is defined.
            if(mySequence == "*")
            {
                // Sequence is undefined, so no translation necessary.
                mySeqWithEq = '*';
            }
            else
            {
                // Sequence defined, so translate it.
                SamQuerySeqWithRef::seqWithEquals(mySequence.c_str(),
                                                  myRecordPtr->myPosition,
                                                  *(getCigarInfo()),
                                                  getReferenceName(),
                                                  *myRefPtr,
                                                  mySeqWithEq);
            }
        }
        return(mySeqWithEq.c_str());
    }
    else
    {
        // translation == BASES
        if(mySeqWithoutEq.length() == 0)
        {
            if(mySequence == "*")
            {
                // Sequence is undefined, so no translation necessary.
                mySeqWithoutEq = '*';
            }
            else
            {
                // Sequence defined, so translate it.
                SamQuerySeqWithRef::seqWithoutEquals(mySequence.c_str(),
                                                     myRecordPtr->myPosition,
                                                     *(getCigarInfo()),
                                                     getReferenceName(),
                                                     *myRefPtr,
                                                     mySeqWithoutEq);
            }
        }
        return(mySeqWithoutEq.c_str());
    }
}

const char * SamRecord::getSequence

(

)

Returns the SAM formatted sequence string (SEQ), translating the base as specified by setSequenceTranslation.

Returns:

sequence string.

Definition at line 1494 of file SamRecord.cpp.

Referenced by SamTags::createMDTag(), getFields(), SamQuerySeqWithRefIter::getNextMatchMismatch(), getSequence(), and shiftIndelsLeft().

{
    return(getSequence(mySequenceTranslation));
}

const SamStatus & SamRecord::getStatus

(

)

Returns the status associated with the last method that sets the status.

Returns:

SamStatus of the last command that sets status.

Definition at line 2307 of file SamRecord.cpp.

{
    return(myStatus);
}

String * SamRecord::getStringTag

(

const char *

tag

)

Get the string value for the specified tag.

Parameters:

	tag	tag to retrieve
	pointer	to the tag's string value if found, NULL if not found.

Definition at line 2099 of file SamRecord.cpp.

Referenced by SamTags::isMDTagCorrect(), and SamValidator::isValidTags().

{
    // Parse the buffer if necessary.
    if(myNeedToSetTagsFromBuffer)
    {
        if(!setTagsFromBuffer())
        {
            // Failed to read the tags from the buffer, so cannot
            // get tags.  setTagsFromBuffer set the errors,
            // so just return null.
            return(NULL);
        }
    }

    int key = MAKEKEY(tag[0], tag[1], 'Z');
    int offset = extras.Find(key);

    int value;
    if (offset < 0)
    {
        // Tag not found.
        return(NULL);
    }

    // Offset is valid, so return the tag.
    value = extras[offset];
    return(&(strings[value]));
}

uint32_t SamRecord::getTagLength

(

)

Returns the length of the BAM formatted tags.

Returns:

length of the BAM formatted tags.

Definition at line 1845 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    if(myNeedToSetTagsFromBuffer)
    {
        // Tags are only set in the buffer, so the size of the tags is
        // the length of the record minus the starting location of the tags.
        unsigned char * tagStart =
            (unsigned char *)myRecordPtr->myData
            + myRecordPtr->myReadNameLength
            + myRecordPtr->myCigarLength * sizeof(int)
            + (myRecordPtr->myReadLength + 1) / 2 + myRecordPtr->myReadLength;

        // The non-tags take up from the start of the record to the tag start.
        // Do not include the block size part of the record since it is not
        // included in the size.
        uint32_t nonTagSize =
            tagStart - (unsigned char*)&(myRecordPtr->myReferenceID);
        // Tags take up the size of the block minus the non-tag section.
        uint32_t tagSize = myRecordPtr->myBlockSize - nonTagSize;
        return(tagSize);
    }

    // Tags are stored outside the buffer, so myTagBufferSize is set.
    return(myTagBufferSize);
}

bool SamRecord::getTagsString	(	const char *	tags,
		String &	returnString,
		char	delim = '\t'
	)

Get the string representation of the tags from the record, formatted as TAG:TYPE:VALUE<delim>TAG:TYPE:VALUE.

.. Sets the Status to SUCCESS when the tags are successfully returned or the tags were not found. If a different error occured, the status is set appropriately.

Parameters:

	tags	the tags to retrieve, formatted as TAG:TYPE;TAG:TYPE...
	returnString	the String to set (this method first clears returnString) to TAG:TYPE:VALUE<delim>TAG:TYPE:VALUE...
	delim	delimiter to use to separate two tags, default is a tab.

Returns:

true if there were not any errors even if no tags were found.

Definition at line 1997 of file SamRecord.cpp.

References SamStatus::INVALID, SamStatus::setStatus(), and SamStatus::SUCCESS.

{
    const char* currentTagPtr = tags;

    returnString.Clear();
    myStatus = SamStatus::SUCCESS;
    if(myNeedToSetTagsFromBuffer)
    {
        if(!setTagsFromBuffer())
        {
            // Failed to read the tags from the buffer, so cannot
            // get tags.
            return(false);
        }
    }

    bool returnStatus = true;

    while(*currentTagPtr != '\0')
    {
        // Tags are formatted as: XY:Z
        // Where X is [A-Za-z], Y is [A-Za-z], and
        // Z is A,i,f,Z,H (cCsSI are also excepted)
        if((currentTagPtr[0] == '\0') || (currentTagPtr[1] == '\0') ||
           (currentTagPtr[2] != ':') || (currentTagPtr[3] == '\0'))
        {
            myStatus.setStatus(SamStatus::INVALID,
                               "getTagsString called with improperly formatted tags.\n");
            returnStatus = false;
            break;
        }

        // Construct the key.
        int key = MAKEKEY(currentTagPtr[0], currentTagPtr[1],
                          currentTagPtr[3]);
        // Look to see if the key exsists in the hash.
        int offset = extras.Find(key);

        if(offset >= 0)
        {
            // Offset is set, so the key was found.
            if(!returnString.IsEmpty())
            {
                returnString += delim;
            }
            returnString += currentTagPtr[0];
            returnString += currentTagPtr[1];
            returnString += ':';
            returnString += currentTagPtr[3];
            returnString += ':';

            // First if it is an integer, determine the actual type of the int.
            char vtype;
            getTypeFromKey(key, vtype);


            // Offset is set, so recalculate the buffer size without this entry.
            // Do NOT remove from strings, integers, or doubles because then
            // extras would need to be updated for all entries with the new indexes
            // into those variables.
            switch(vtype)
            {
                case 'i':
                    returnString += *(int*)getIntegerPtr(offset, vtype);
                    break;
                case 'f':
                    returnString += *(double*)getDoublePtr(offset);
                    break;
                case 'Z':
                    returnString += *(String*)getStringPtr(offset);
                    break;
                default:
                    myStatus.setStatus(SamStatus::INVALID,
                                       "rmTag called with unknown type.\n");
                    returnStatus = false;
                    break;
            };
        }
        // Increment to the next tag.
        if(currentTagPtr[4] == ';')
        {
            // Increment once more.
            currentTagPtr += 5;
        }
        else if(currentTagPtr[4] != '\0')
        {
            // Invalid tag format.
            myStatus.setStatus(SamStatus::INVALID,
                               "rmTags called with improperly formatted tags.\n");
            returnStatus = false;
            break;
        }
        else
        {
            // Last Tag.
            currentTagPtr += 4;
        }
    }
    return(returnStatus);
}

bool SamRecord::isCharType

(

char

vtype

)

const

Returns whether or not the specified vtype is a char type.

Does not set SamStatus.

Parameters:

vtype

value type to check.

Returns:

true if the passed in vtype is a char ('A'), false otherwise.

Definition at line 1977 of file SamRecord.cpp.

{
    if(vtype == 'A')
    {
        return(true);
    }
    return(false);
}

bool SamRecord::isDoubleType

(

char

vtype

)

const

Returns whether or not the specified vtype is a double type.

Does not set SamStatus.

Parameters:

vtype

value type to check.

Returns:

true if the passed in vtype is a double ('f'), false otherwise.

Definition at line 1967 of file SamRecord.cpp.

{
    if(vtype == 'f')
    {
        return(true);
    }
    return(false);
}

bool SamRecord::isIntegerType

(

char

vtype

)

const

Returns whether or not the specified vtype is an integer type.

Does not set SamStatus.

Parameters:

vtype

value type to check.

Returns:

true if the passed in vtype is an integer ('c', 'C', 's', 'S', 'i', 'I'), false otherwise.

Definition at line 1955 of file SamRecord.cpp.

{
    if((vtype == 'c') || (vtype == 'C') ||
       (vtype == 's') || (vtype == 'S') ||
       (vtype == 'i') || (vtype == 'I'))
    {
        return(true);
    }
    return(false);
}

bool SamRecord::isStringType

(

char

vtype

)

const

Returns whether or not the specified vtype is a string type.

Does not set SamStatus.

Parameters:

vtype

value type to check.

Returns:

true if the passed in vtype is a string ('Z'), false othwerise.

Definition at line 1987 of file SamRecord.cpp.

{
    if(vtype == 'Z')
    {
        return(true);
    }
    return(false);
}

bool SamRecord::isValid

(

SamFileHeader &

header

)

Returns whether or not the record is valid, setting the status to indicate success or failure.

Parameters:

header

SAM Header associated with the record. Used to perform some validation against the header.

Returns:

true if the record is valid, false if not.

Definition at line 157 of file SamRecord.cpp.

References SamValidationErrors::getErrorString(), SamStatus::INVALID, SamValidator::isValid(), SamStatus::setStatus(), and SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    SamValidationErrors invalidSamErrors;
    if(!SamValidator::isValid(header, *this, invalidSamErrors))
    {
        // The record is not valid.
        std::string errorMessage = "";
        invalidSamErrors.getErrorString(errorMessage);
        myStatus.setStatus(SamStatus::INVALID, errorMessage.c_str());
        return(false);
    }
    // The record is valid.
    return(true);
}

void SamRecord::resetRecord

(

)

Reset the fields of the record to a default value.

This is not necessary when you are reading a SAM/BAM file, but if you are setting fields, it is a good idea to clean out a record before reusing it. Clearing it allows you to not have to set any empty fields.

Definition at line 91 of file SamRecord.cpp.

References clearTags(), NONE, and SamStatus::SUCCESS.

Referenced by SamRecord(), setBuffer(), setBufferFromFile(), and ~SamRecord().

{
    myIsBufferSynced = true;

    myRecordPtr->myBlockSize = DEFAULT_BLOCK_SIZE;
    myRecordPtr->myReferenceID = -1;
    myRecordPtr->myPosition = -1;
    myRecordPtr->myReadNameLength = DEFAULT_READ_NAME_LENGTH;
    myRecordPtr->myMapQuality = 0;
    myRecordPtr->myBin = DEFAULT_BIN;
    myRecordPtr->myCigarLength = 0;
    myRecordPtr->myFlag = 0;
    myRecordPtr->myReadLength = 0;
    myRecordPtr->myMateReferenceID = -1;
    myRecordPtr->myMatePosition = -1;
    myRecordPtr->myInsertSize = 0;

    // Set the sam values for the variable length fields.
    // TODO - one way to speed this up might be to not set to "*" and just
    // clear them, and write out a '*' for SAM if it is empty.
    myReadName = DEFAULT_READ_NAME;
    myReferenceName = "*";
    myMateReferenceName = "*";
    myCigar = "*";
    mySequence = "*";
    mySeqWithEq.clear();
    mySeqWithoutEq.clear();
    myQuality = "*";
    myNeedToSetTagsFromBuffer = false;
    myNeedToSetTagsInBuffer = false;

    // Initialize the calculated alignment info to the uncalculated value.
    myAlignmentLength = -1;
    myUnclippedStartOffset = -1;
    myUnclippedEndOffset = -1;

    clearTags();

    // Set the bam values for the variable length fields.
    // Only the read name needs to be set, the others are a length of 0.
    // Set the read name.  The min size of myRecordPtr includes the size for
    // the default read name.
    memcpy(&(myRecordPtr->myData), myReadName.c_str(),
           myRecordPtr->myReadNameLength);

    // Set that the variable length buffer fields are valid.
    myIsReadNameBufferValid = true;
    myIsCigarBufferValid = true;
    myIsSequenceBufferValid = true;
    myBufferSequenceTranslation = NONE;
    myIsQualityBufferValid = true;
    myIsTagsBufferValid = true;
    myIsBinValid = true;

    myCigarTempBufferLength = -1;

    myStatus = SamStatus::SUCCESS;

    NOT_FOUND_TAG_STRING = "";
    NOT_FOUND_TAG_INT = -1;
    NOT_FOUND_TAG_DOUBLE = -1;
}

bool SamRecord::rmTag	(	const char *	tag,
		char	type
	)

Remove a tag.

Parameters:

	tag	tag to remove.
	type	of the tag to be removed.

Returns:

true if the tag no longer exists in the record, false if it could not be removed (Returns true if the tag was not found in the record).

Definition at line 924 of file SamRecord.cpp.

References getString(), SamStatus::INVALID, SamStatus::setStatus(), and SamStatus::SUCCESS.

{
    // Check the length of tag.
    if(strlen(tag) != 2)
    {
        // Tag is the wrong length.
        myStatus.setStatus(SamStatus::INVALID,
                           "rmTag called with tag that is not 2 characters\n");
        return(false);
    }

    myStatus = SamStatus::SUCCESS;
    if(myNeedToSetTagsFromBuffer)
    {
        if(!setTagsFromBuffer())
        {
            // Failed to read the tags from the buffer, so cannot
            // get tags.
            return(false);
        }
    }

    // Construct the key.
    int key = MAKEKEY(tag[0], tag[1], type);
    // Look to see if the key exsists in the hash.
    int offset = extras.Find(key);

    if(offset < 0)
    {
        // Not found, so return true, successfully removed since
        // it is not in tag.
        return(true);
    }

    // Offset is set, so the key was found.
    // First if it is an integer, determine the actual type of the int.
    char vtype;
    getTypeFromKey(key, vtype);
    if(vtype == 'i')
    {
        vtype = getIntegerType(offset);
    }

    // Offset is set, so recalculate the buffer size without this entry.
    // Do NOT remove from strings, integers, or doubles because then
    // extras would need to be updated for all entries with the new indexes
    // into those variables.
    int rmBuffSize = 0;
    switch(vtype)
    {
        case 'A':
        case 'c':
        case 'C':
            rmBuffSize = 4;
            break;
        case 's':
        case 'S':
            rmBuffSize = 5;
            break;
        case 'i':
        case 'I':
            rmBuffSize = 7;
            break;
        case 'f':
            rmBuffSize = 7;
            break;
        case 'Z':
            rmBuffSize = 4 + getString(offset).Length();
            break;
        default:
            myStatus.setStatus(SamStatus::INVALID,
                               "rmTag called with unknown type.\n");
            return(false);
            break;
    };

    // The buffer tags are now out of sync.
    myNeedToSetTagsInBuffer = true;
    myIsTagsBufferValid = false;
    myIsBufferSynced = false;
    myTagBufferSize -= rmBuffSize;

    // Remove from the hash.
    extras.Delete(offset);
    return(true);
}

bool SamRecord::rmTags

(

const char *

tags

)

Remove tags.

Parameters:

tags

tags to remove, formatted as Tag:Type;Tag:Type;Tag:Type...

Returns:

true if all tags no longer exist in the record, false if any could not be removed (Returns true if the tags were not found in the record). SamStatus is set to INVALID if the tags are incorrectly formatted.

Definition at line 1012 of file SamRecord.cpp.

References getString(), SamStatus::INVALID, SamStatus::setStatus(), and SamStatus::SUCCESS.

{
    const char* currentTagPtr = tags;

    myStatus = SamStatus::SUCCESS;
    if(myNeedToSetTagsFromBuffer)
    {
        if(!setTagsFromBuffer())
        {
            // Failed to read the tags from the buffer, so cannot
            // get tags.
            return(false);
        }
    }

    bool returnStatus = true;

    int rmBuffSize = 0;
    while(*currentTagPtr != '\0')
    {

        // Tags are formatted as: XY:Z
        // Where X is [A-Za-z], Y is [A-Za-z], and
        // Z is A,i,f,Z,H (cCsSI are also excepted)
        if((currentTagPtr[0] == '\0') || (currentTagPtr[1] == '\0') ||
           (currentTagPtr[2] != ':') || (currentTagPtr[3] == '\0'))
        {
            myStatus.setStatus(SamStatus::INVALID,
                               "rmTags called with improperly formatted tags.\n");
            returnStatus = false;
            break;
        }

        // Construct the key.
        int key = MAKEKEY(currentTagPtr[0], currentTagPtr[1],
                          currentTagPtr[3]);
        // Look to see if the key exsists in the hash.
        int offset = extras.Find(key);

        if(offset >= 0)
        {
            // Offset is set, so the key was found.
            // First if it is an integer, determine the actual type of the int.
            char vtype;
            getTypeFromKey(key, vtype);
            if(vtype == 'i')
            {
                vtype = getIntegerType(offset);
            }

            // Offset is set, so recalculate the buffer size without this entry.
            // Do NOT remove from strings, integers, or doubles because then
            // extras would need to be updated for all entries with the new indexes
            // into those variables.
            switch(vtype)
            {
                case 'A':
                case 'c':
                case 'C':
                    rmBuffSize += 4;
                    break;
                case 's':
                case 'S':
                    rmBuffSize += 5;
                    break;
                case 'i':
                case 'I':
                    rmBuffSize += 7;
                    break;
                case 'f':
                    rmBuffSize += 7;
                    break;
                case 'Z':
                    rmBuffSize += 4 + getString(offset).Length();
                    break;
                default:
                    myStatus.setStatus(SamStatus::INVALID,
                                       "rmTag called with unknown type.\n");
                    returnStatus = false;
                    break;
            };

            // Remove from the hash.
            extras.Delete(offset);
        }
        // Increment to the next tag.
        if(currentTagPtr[4] == ';')
        {
            // Increment once more.
            currentTagPtr += 5;
        }
        else if(currentTagPtr[4] != '\0')
        {
            // Invalid tag format.
            myStatus.setStatus(SamStatus::INVALID,
                               "rmTags called with improperly formatted tags.\n");
            returnStatus = false;
            break;
        }
        else
        {
            // Last Tag.
            currentTagPtr += 4;
        }
    }

    // The buffer tags are now out of sync.
    myNeedToSetTagsInBuffer = true;
    myIsTagsBufferValid = false;
    myIsBufferSynced = false;
    myTagBufferSize -= rmBuffSize;


    return(returnStatus);
}

bool SamRecord::set0BasedMatePosition

(

int32_t

matePosition

)

Set the mate/next fragment's leftmost position using the specified 0-based (BAM format) value.

Internal processing handles the switching between SAM/BAM formats when read/written.

Parameters:

position

0-based start position

Returns:

true if successfully set, false if not.

Definition at line 324 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by set1BasedMatePosition().

{
    myStatus = SamStatus::SUCCESS;
    myRecordPtr->myMatePosition = matePosition;
    return true;
}

bool SamRecord::set0BasedPosition

(

int32_t

position

)

Set the leftmost position using the specified 0-based (BAM format) value.

Internal processing handles the switching between SAM/BAM formats when read/written.

Parameters:

position

0-based start position

Returns:

true if successfully set, false if not.

Definition at line 238 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by set1BasedPosition(), and SamFilter::softClip().

{
    myStatus = SamStatus::SUCCESS;
    myRecordPtr->myPosition = position;
    myIsBinValid = false;
    return true;
}

bool SamRecord::set1BasedMatePosition

(

int32_t

matePosition

)

Set the mate/next fragment's leftmost position (PNEXT) using the specified 1-based (SAM format) value.

Internal processing handles the switching between SAM/BAM formats when read/written.

Parameters:

position

1-based start position

Returns:

true if successfully set, false if not.

Definition at line 318 of file SamRecord.cpp.

References set0BasedMatePosition().

{
    return(set0BasedMatePosition(matePosition - 1));
}

bool SamRecord::set1BasedPosition

(

int32_t

position

)

Set the leftmost position (POS) using the specified 1-based (SAM format) value.

Internal processing handles the switching between SAM/BAM formats when read/written.

Parameters:

position

1-based start position

Returns:

true if successfully set, false if not.

Definition at line 232 of file SamRecord.cpp.

References set0BasedPosition().

{
    return(set0BasedPosition(position - 1));
}

SamStatus::Status SamRecord::setBuffer	(	const char *	fromBuffer,
		uint32_t	fromBufferSize,
		SamFileHeader &	header
	)

Sets the SamRecord to contain the information in the BAM formatted fromBuffer.

Parameters:

	fromBuffer	buffer to read the BAM record from.
	fromBufferSize	size of the buffer containing the BAM record.
	header	BAM header for the record.

Returns:

status of reading the BAM record from the buffer.

Definition at line 521 of file SamRecord.cpp.

References SamStatus::FAIL_MEM, SamStatus::FAIL_PARSE, resetRecord(), SamStatus::setStatus(), and SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    if((fromBuffer == NULL) || (fromBufferSize == 0))
    {
        // Buffer is empty.
        myStatus.setStatus(SamStatus::FAIL_PARSE,
                           "Cannot parse an empty file.");
        return(SamStatus::FAIL_PARSE);
    }

    // Clear the record.
    resetRecord();

    // allocate space for the record size.
    if(!allocateRecordStructure(fromBufferSize))
    {
        // Failed to allocate space.
        return(SamStatus::FAIL_MEM);
    }

    memcpy(myRecordPtr, fromBuffer, fromBufferSize);

    setVariablesForNewBuffer(header);

    // Return the status of the record.
    return(SamStatus::SUCCESS);
}

SamStatus::Status SamRecord::setBufferFromFile	(	IFILE	filePtr,
		SamFileHeader &	header
	)

Read the BAM record from a file.

Parameters:

	filePtr	file to read the buffer from.
	header	BAM header for the record.

Returns:

status of the reading the BAM record from the file.

Definition at line 554 of file SamRecord.cpp.

References SamStatus::FAIL_IO, SamStatus::FAIL_MEM, SamStatus::FAIL_ORDER, SamStatus::FAIL_PARSE, ifeof(), ifread(), InputFile::isOpen(), SamStatus::NO_MORE_RECS, resetRecord(), SamStatus::setStatus(), and SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    if((filePtr == NULL) || (filePtr->isOpen() == false))
    {
        // File is not open, return failure.
        myStatus.setStatus(SamStatus::FAIL_ORDER,
                           "Can't read from an unopened file.");
        return(SamStatus::FAIL_ORDER);
    }

    // Clear the record.
    resetRecord();

    // read the record size.
    int numBytes =
        ifread(filePtr, &(myRecordPtr->myBlockSize), sizeof(int32_t));

    // Check to see if the end of the file was hit and no bytes were read.
    if(ifeof(filePtr) && (numBytes == 0))
    {
        // End of file, nothing was read, no more records.
        myStatus.setStatus(SamStatus::NO_MORE_RECS,
                           "No more records left to read.");
        return(SamStatus::NO_MORE_RECS);
    }

    if(numBytes != sizeof(int32_t))
    {
        // Failed to read the entire block size.  Either the end of the file
        // was reached early or there was an error.
        if(ifeof(filePtr))
        {
            // Error: end of the file reached prior to reading the rest of the
            // record.
            myStatus.setStatus(SamStatus::FAIL_PARSE,
                               "EOF reached in the middle of a record.");
            return(SamStatus::FAIL_PARSE);
        }
        else
        {
            // Error reading.
            myStatus.setStatus(SamStatus::FAIL_IO,
                               "Failed to read the record size.");
            return(SamStatus::FAIL_IO);
        }
    }

    // allocate space for the record size.
    if(!allocateRecordStructure(myRecordPtr->myBlockSize + sizeof(int32_t)))
    {
        // Failed to allocate space.
        // Status is set by allocateRecordStructure.
        return(SamStatus::FAIL_MEM);
    }

    // Read the rest of the alignment block, starting at the reference id.
    if(ifread(filePtr, &(myRecordPtr->myReferenceID), myRecordPtr->myBlockSize)
       != (unsigned int)myRecordPtr->myBlockSize)
    {
        // Error reading the record.  Reset it and return failure.
        resetRecord();
        myStatus.setStatus(SamStatus::FAIL_IO,
                           "Failed to read the record");
        return(SamStatus::FAIL_IO);
    }

    setVariablesForNewBuffer(header);

    // Return the status of the record.
    return(SamStatus::SUCCESS);
}

bool SamRecord::setCigar

(

const Cigar &

cigar

)

Set the CIGAR to the specified Cigar object.

Internal processing handles the switching between SAM/BAM formats when read/written.

Parameters:

cigar

object to set this record's cigar to have.

Returns:

true if successfully set, false if not.

Definition at line 274 of file SamRecord.cpp.

References Cigar::getCigarString(), and SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    cigar.getCigarString(myCigar);

    myIsBufferSynced = false;
    myIsCigarBufferValid = false;
    myCigarTempBufferLength = -1;
    myIsBinValid = false;

    // Initialize the calculated alignment info to the uncalculated value.
    myAlignmentLength = -1;
    myUnclippedStartOffset = -1;
    myUnclippedEndOffset = -1;

    return true;
}

bool SamRecord::setCigar

(

const char *

cigar

)

Set the CIGAR to the specified SAM formatted cigar string.

Internal processing handles the switching between SAM/BAM formats when read/written.

Parameters:

cigar

string containing the SAM formatted cigar.

Returns:

true if successfully set, false if not.

Definition at line 255 of file SamRecord.cpp.

References SamStatus::SUCCESS.

Referenced by shiftIndelsLeft(), and SamFilter::softClip().

{
    myStatus = SamStatus::SUCCESS;
    myCigar = cigar;

    myIsBufferSynced = false;
    myIsCigarBufferValid = false;
    myCigarTempBufferLength = -1;
    myIsBinValid = false;

    // Initialize the calculated alignment info to the uncalculated value.
    myAlignmentLength = -1;
    myUnclippedStartOffset = -1;
    myUnclippedEndOffset = -1;

    return true;
}

bool SamRecord::setFlag

(

uint16_t

flag

)

Set the bitwise FLAG to the specified value.

Parameters:

flag

integer flag to use.

Returns:

true if successfully set, false if not.

Definition at line 211 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    myRecordPtr->myFlag = flag;
    return true;
}

bool SamRecord::setInsertSize

(

int32_t

insertSize

)

Sets the inferred insert size (ISIZE)/observed template length (TLEN).

Parameters:

insertSize

inferred insert size/observed template length.

Returns:

true if successfully set, false if not.

Definition at line 332 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    myRecordPtr->myInsertSize = insertSize;
    return true;
}

bool SamRecord::setMapQuality

(

uint8_t

mapQuality

)

Set the mapping quality (MAPQ).

Parameters:

mapQuality

map quality to set in the record.

Returns:

true if successfully set, false if not.

Definition at line 247 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    myRecordPtr->myMapQuality = mapQuality;
    return true;
}

bool SamRecord::setMateReferenceName	(	SamFileHeader &	header,
		const char *	mateReferenceName
	)

Set the mate/next fragment's reference sequence name (RNEXT) to the specified name, using the header to determine the mate reference id.

Parameters:

	header	SAM/BAM header to use to determine the mate reference id.
	referenceName	mate reference name to use.

Returns:

true if successfully set, false if not

Definition at line 293 of file SamRecord.cpp.

References SamFileHeader::getReferenceID(), and SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    // Set the mate reference, if it is "=", set it to be equal
    // to myReferenceName.  This assumes that myReferenceName has already
    // been called.
    if(strcmp(mateReferenceName, FIELD_ABSENT_STRING) == 0)
    {
        myMateReferenceName = myReferenceName;
    }
    else
    {
        myMateReferenceName = mateReferenceName;
    }

    // Set the Mate Reference ID.
    // If the reference ID does not already exist, add it (pass true)
    myRecordPtr->myMateReferenceID =
        header.getReferenceID(myMateReferenceName, true);

    return true;
}

bool SamRecord::setQuality

(

const char *

quality

)

Sets the quality (QUAL) to the specified SAM formatted quality string.

Internal processing handles switching between SAM/BAM formats when read/written.

Parameters:

quality

SAM quality string.

Returns:

true if successfully set, false if not.

Definition at line 353 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    myQuality = quality;
    myIsBufferSynced = false;
    myIsQualityBufferValid = false;
    return true;
}

bool SamRecord::setReadName

(

const char *

readName

)

Set QNAME to the passed in name.

Parameters:

readName

the readname to set the QNAME to.

Returns:

true if successfully set, false if not.

Definition at line 189 of file SamRecord.cpp.

References SamStatus::INVALID, SamStatus::setStatus(), and SamStatus::SUCCESS.

{
    myReadName = readName;
    myIsBufferSynced = false;
    myIsReadNameBufferValid = false;
    myStatus = SamStatus::SUCCESS;

    // The read name must at least have some length, otherwise this is a parsing
    // error.
    if(myReadName.Length() == 0)
    {
        // Invalid - reset ReadName return false.
        myReadName = DEFAULT_READ_NAME;
        myRecordPtr->myReadNameLength = DEFAULT_READ_NAME_LENGTH;
        myStatus.setStatus(SamStatus::INVALID, "0 length Query Name.");
        return(false);
    }

    return true;
}

void SamRecord::setReference

(

GenomeSequence *

reference

)

Set the reference to the specified genome sequence object.

Parameters:

reference

pointer to the GenomeSequence object.

Definition at line 174 of file SamRecord.cpp.

Referenced by SamFile::GetNumOverlaps(), SamFile::readIndexedRecord(), SamFile::ReadRecord(), SamFile::validateSortOrder(), and SamFile::WriteRecord().

{
    myRefPtr = reference;
}

bool SamRecord::setReferenceName	(	SamFileHeader &	header,
		const char *	referenceName
	)

Set the reference sequence name (RNAME) to the specified name, using the header to determine the reference id.

Parameters:

	header	SAM/BAM header to use to determine the reference id.
	referenceName	reference name to use.

Returns:

true if successfully set, false if not

Definition at line 219 of file SamRecord.cpp.

References SamFileHeader::getReferenceID(), and SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;

    myReferenceName = referenceName;
    // If the reference ID does not already exist, add it (pass true)
    myRecordPtr->myReferenceID = header.getReferenceID(referenceName, true);

    return true;
}

bool SamRecord::setSequence

(

const char *

seq

)

Sets the sequence (SEQ) to the specified SAM formatted sequence string.

Internal processing handles switching between SAM/BAM formats when read/written.

Parameters:

seq

SAM sequence string. May contain '='.

Returns:

true if successfully set, false if not.

Definition at line 340 of file SamRecord.cpp.

References SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    mySequence = seq;
    mySeqWithEq.clear();
    mySeqWithoutEq.clear();

    myIsBufferSynced = false;
    myIsSequenceBufferValid = false;
    return true;
}

void SamRecord::setSequenceTranslation

(

SequenceTranslation

translation

)

Set the type of sequence translation to use when getting the sequence.

The default type (if this method is never called) is NONE (the sequence is left as-is). Can be over-ridden by using the accessors that take a SequenceTranslation parameter.

Parameters:

translation

type of sequence translation to use.

Definition at line 183 of file SamRecord.cpp.

Referenced by SamFile::GetNumOverlaps(), SamFile::readIndexedRecord(), SamFile::ReadRecord(), and SamFile::validateSortOrder().

{
    mySequenceTranslation = translation;
}

bool SamRecord::shiftIndelsLeft

(

)

Shift the indels (if any) to the left by updating the CIGAR.

Returns:

true if the cigar was shifted, false if not.

Definition at line 364 of file SamRecord.cpp.

References BASES, Cigar::foundInQuery(), getSequence(), CigarRoller::IncrementCount(), Cigar::insert, Cigar::isMatchOrMismatch(), CigarRoller::Remove(), setCigar(), Cigar::size(), and CigarRoller::Update().

{
    // Check to see whether or not the Cigar has already been
    // set - this is determined by checking if alignment length
    // is set since alignment length and the cigar are set
    // at the same time.
    if(myAlignmentLength == -1)
    {
        // Not been set, so calculate it.
        parseCigar();
    }

    // Track whether or not there was a shift.
    bool shifted = false;

    // Cigar is set, so now myCigarRoller can be used.
    // Track where in the read we are.
    uint32_t currentPos = 0;

    // Since the loop starts at 1 because the first operation can't be shifted,
    // increment the currentPos past the first operation.
    if(Cigar::foundInQuery(myCigarRoller[0]))
    {
        // This op was found in the read, increment the current position.
        currentPos += myCigarRoller[0].count;
    }

    int numOps = myCigarRoller.size();

    // Loop through the cigar operations from the 2nd operation since
    // the first operation is already on the end and can't shift.
    for(int currentOp = 1; currentOp < numOps; currentOp++)
    {
        if(myCigarRoller[currentOp].operation == Cigar::insert)
        {
            // For now, only shift a max of 1 operation.
            int prevOpIndex = currentOp-1;
            // Track the next op for seeing if it is the same as the
            // previous for merging reasons.
            int nextOpIndex = currentOp+1;
            if(nextOpIndex == numOps)
            {
                // There is no next op, so set it equal to the current one.
                nextOpIndex = currentOp;
            }
            // The start of the previous operation, so we know when we hit it
            // so we don't shift past it.
            uint32_t prevOpStart =
                currentPos - myCigarRoller[prevOpIndex].count;

            // We can only shift if the previous operation
            if(!Cigar::isMatchOrMismatch(myCigarRoller[prevOpIndex]))
            {
                // TODO - shift past pads
                // An insert is in the read, so increment the position.
                currentPos += myCigarRoller[currentOp].count;
                // Not a match/mismatch, so can't shift into it.
                continue;
            }

            // It is a match or mismatch, so check to see if we can
            // shift into it.

            // The end of the insert is calculated by adding the size
            // of this insert minus 1 to the start of the insert.
            uint32_t insertEndPos =
                currentPos + myCigarRoller[currentOp].count - 1;

            // The insert starts at the current position.
            uint32_t insertStartPos = currentPos;

            // Loop as long as the position before the insert start
            // matches the last character in the insert. If they match,
            // the insert can be shifted one index left because the
            // implied reference will not change.  If they do not match,
            // we can't shift because the implied reference would change.
            // Stop loop when insertStartPos = prevOpStart, because we
            // don't want to move past that.
            while((insertStartPos > prevOpStart) &&
                  (getSequence(insertEndPos,BASES) ==
                   getSequence(insertStartPos - 1, BASES)))
            {
                // We can shift, so move the insert start & end one left.
                --insertEndPos;
                --insertStartPos;
            }

            // Determine if a shift has occurred.
            int shiftLen = currentPos - insertStartPos;
            if(shiftLen > 0)
            {
                // Shift occured, so adjust the cigar if the cigar will
                // not become more operations.
                // If the next operation is the same as the previous or
                // if the insert and the previous operation switch positions
                // then the cigar has the same number of operations.
                // If the next operation is different, and the shift splits
                // the previous operation in 2, then the cigar would
                // become longer, so we do not want to shift.
                if(myCigarRoller[nextOpIndex].operation ==
                   myCigarRoller[prevOpIndex].operation)
                {
                    // The operations are the same, so merge them by adding
                    // the length of the shift to the next operation.
                    myCigarRoller.IncrementCount(nextOpIndex, shiftLen);
                    myCigarRoller.IncrementCount(prevOpIndex, -shiftLen);

                    // If the previous op length is 0, just remove that
                    // operation.
                    if(myCigarRoller[prevOpIndex].count == 0)
                    {
                        myCigarRoller.Remove(prevOpIndex);
                    }
                    shifted = true;
                }
                else
                {
                    // Can only shift if the insert shifts past the
                    // entire previous operation, otherwise an operation
                    // would need to be added.
                    if(insertStartPos == prevOpStart)
                    {
                        // Swap the positions of the insert and the
                        // previous operation.
                        myCigarRoller.Update(currentOp,
                                             myCigarRoller[prevOpIndex].operation,
                                             myCigarRoller[prevOpIndex].count);
                        // Size of the previous op is the entire
                        // shift length.
                        myCigarRoller.Update(prevOpIndex,
                                             Cigar::insert,
                                             shiftLen);
                        shifted = true;
                    }
                }
            }
            // An insert is in the read, so increment the position.
            currentPos += myCigarRoller[currentOp].count;
        }
        else if(Cigar::foundInQuery(myCigarRoller[currentOp]))
        {
            // This op was found in the read, increment the current position.
            currentPos += myCigarRoller[currentOp].count;
        }
    }
    if(shifted)
    {
        // TODO - setCigar is currently inefficient because later the cigar
        // roller will be recalculated, but for now it will work.
        setCigar(myCigarRoller);
    }
    return(shifted);
}

SamStatus::Status SamRecord::writeRecordBuffer	(	IFILE	filePtr,
		SequenceTranslation	translation
	)

Write the record as a BAM into the specified already opened file using the specified translation on the sequence.

Parameters:

	filePtr	file to write the BAM record into.
	translation	type of sequence translation to use.

Returns:

status of the write.

Definition at line 1170 of file SamRecord.cpp.

References SamStatus::FAIL_IO, SamStatus::FAIL_ORDER, SamStatus::getStatus(), ifwrite(), InputFile::isOpen(), SamStatus::setStatus(), and SamStatus::SUCCESS.

{
    myStatus = SamStatus::SUCCESS;
    if((filePtr == NULL) || (filePtr->isOpen() == false))
    {
        // File is not open, return failure.
        myStatus.setStatus(SamStatus::FAIL_ORDER,
                           "Can't write to an unopened file.");
        return(SamStatus::FAIL_ORDER);
    }

    if((myIsBufferSynced == false) ||
       (myBufferSequenceTranslation != translation))
    {
        if(!fixBuffer(translation))
        {
            return(myStatus.getStatus());
        }
    }

    // Write the record.
    unsigned int numBytesToWrite = myRecordPtr->myBlockSize + sizeof(int32_t);
    unsigned int numBytesWritten =
        ifwrite(filePtr, myRecordPtr, numBytesToWrite);

    // Return status based on if the correct number of bytes were written.
    if(numBytesToWrite == numBytesWritten)
    {
        return(SamStatus::SUCCESS);
    }
    // The correct number of bytes were not written.
    myStatus.setStatus(SamStatus::FAIL_IO, "Failed to write the entire record.");
    return(SamStatus::FAIL_IO);
}

SamStatus::Status SamRecord::writeRecordBuffer

(

IFILE

filePtr

)

Write the record as a BAM into the specified already opened file.

Parameters:

filePtr

file to write the BAM record into.

Returns:

status of the write.

Definition at line 1163 of file SamRecord.cpp.

{
    return(writeRecordBuffer(filePtr, mySequenceTranslation));
}

---

The documentation for this class was generated from the following files:

• bam/SamRecord.h
• bam/SamRecord.cpp
